FAM-2520 Supreme Brick Making Machine

Hardic Engineering’s FAM-2520 Supreme is an automatic multi-purpose brick and block making machine with double-vibration, pressure-based compaction and PLC touch-screen control.

Hardic Engineering team supporting FAM-2520 Supreme brick making machinery
FAM-2520

FULLY AUTOMATIC FLY ASH BRICK MAKING MACHINE

Hardic Engineering manufactures and supplies the FAM-2520 Supreme automatic fly ash brick making machine for producing fly ash bricks, paver blocks, solid concrete blocks and hollow blocks. The supplied page lists an output of 8 bricks per cycle and a production capacity of 11,520 bricks per shift. Its specifications include a 15–30 second cycle time, 50–90 Hz vibration frequency, a double-vibration compaction system rated at 20 HP, a 500-litre hydraulic oil tank and a PLC-based touch-screen control panel with Wi-Fi SCADA. Refer to the technical tables below for the listed machine details and product-size options.

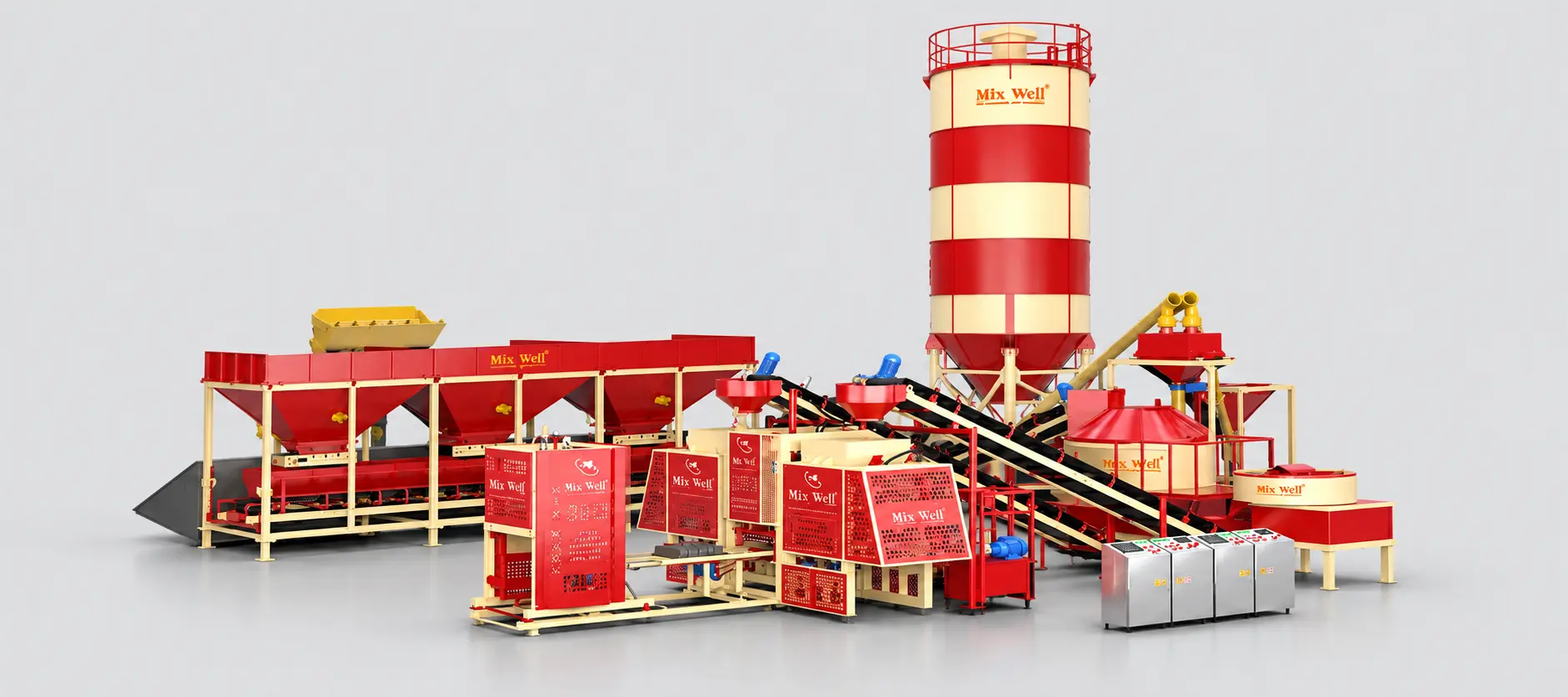

FAM-2520 Supreme fully automatic fly ash brick making machine product

Technical Specification

Sr. No. Particulars Specification
1 Machine Type Automatic
2 Pallet Size 950 × 610 × 25 mm
3 Cycle Time 15–30 seconds
4 Vibration Frequency 50–90 Hz
5 Max Production Height 200 mm
6 Machine Type Multi-purpose
7 Hydraulic Oil Capacity 500 litres
8 Material Compaction System Double vibration: 10 HP + 10 HP (20 HP), pressure-based
9 Required Shed Area 8,000 sq. ft. minimum
10 Control Panel Wi-Fi SCADA system + PLC-based touch screen
1
Machine Type
Automatic
2
Pallet Size
950 × 610 × 25 mm
3
Cycle Time
15–30 seconds
4
Vibration Frequency
50–90 Hz
5
Max Production Height
200 mm
6
Machine Type
Multi-purpose
7
Hydraulic Oil Capacity
500 litres
8
Material Compaction System
Double vibration: 10 HP + 10 HP (20 HP), pressure-based
9
Required Shed Area
8,000 sq. ft. minimum
10
Control Panel
Wi-Fi SCADA system + PLC-based touch screen
Latest German Technology: Hydraulic + Double Vibration System
Operation: Automatic Multi Purpose Block Making Machine

Brick & Block Capacity & Sizes

Fly ash brick sample for automatic brick making machine

Fly Ash Brick

Size (mm):230x 110 x 75
Size (Inch):(9" x 4.25" x 3")
PCS/Cavity:14
PC/Hr:3,360
PCS/8 Hr:26,880
Fly ash brick on edge sample produced by brick making machinery

Brick On Edge

Size (mm):230 x 110 x 75
Size (Inch):(9" x 4.25" x 3")
PCS/Cavity:18
PC/Hr:4,320
PCS/8 Hr:34,560
Standard fly ash brick sample for FAM-2520 machine

Fly Ash Brick

Size (mm):190 x 90 x 90
Size (Inch):(8" x 4" x 4")
PCS/Cavity:16
PC/Hr:3,840
PCS/8 Hr:30,720
Large fly ash brick sample for automatic brick making machine

Large Fly Ash

Size (mm):250 x 120 x 75
Size (Inch):(10" x 5" x 3")
PCS/Cavity:12
PC/Hr:2,880
PCS/8 Hr:23,040
Eight-inch solid concrete block sample

Solid Block 8"

Size (mm):400 x 200 x 200
Size (Inch):(16" x 8" x 8")
PCS/Cavity:4
PC/Hr:960
PCS/8 Hr:7,680
Six-inch solid concrete block sample

Solid Block 6"

Size (mm):400 x 200 x 150
Size (Inch):(16" x 8" x 6")
PCS/Cavity:6
PC/Hr:1,440
PCS/8 Hr:11,520
Four-inch solid concrete block sample

Solid Block 4"

Size (mm):400 x 200 x 100
Size (Inch):(16" x 8" x 4")
PCS/Cavity:8
PC/Hr:1,920
PCS/8 Hr:15,360
Hollow concrete block sample

Hollow Block

Size (mm):400 x 200 x 200
Size (Inch):(16" x 8" x 8")
PCS/Cavity:4
PC/Hr:960
PCS/8 Hr:7,680
Zigzag interlocking paver block sample

Zig Zag Paver

Size (mm):225x112.5x60/80
PCS/Cavity:14
PC/Hr:2,520
PCS/8 Hr:20,160
I-shape interlocking paver block sample

I Shape Paver

Size (mm):200x165x60/80
PCS/Cavity:12
PC/Hr:2,160
PCS/8 Hr:17,280
Brick paver sample for concrete product manufacturing

Brick Paver

Size (mm):200 x 100 x 100
Size (Inch):(8" x 4" x 4")
PCS/Cavity:14
PC/Hr:2,520
PCS/8 Hr:20,160
Curve stone kerb block sample

Curve Stone

Size (mm):300 x 300 x 100
Size (Inch):(12" x 12" x 4")
PCS/Cavity:2
PC/Hr:480
PCS/8 Hr:3,840

Compare FAM-2520 Supreme With Other Models

Product Size FAM-1080 FAM-1440 FAM-1800 FAM-2160 FAM-2520
Fly Ash Brick 230x110x75 MM
190x90x90 MM
250x120x75 MM		 1440
1920
1440		 1920
2400
1920		 2400
2880
1920		 2880
3360
2400		 3360
3840
2880
Fly Ash Brick on Edge 230x110x75 MM 2400 2880 3360 3840 4320
Solid Concrete Block 400x200x200 mm
400x200x150 MM
400x200x100 MM		 480
480
720		 480
720
960		 720
960
1200		 720
960
1440		 960
1440
1920
Hollow Block 400x200x200 mm 480 480 720 720 960
Zigzag Paver 225x112.5x60 MM 1080 1440 1800 2160 2520
I Shape Paver 200x165x60 MM 720 1080 1440 1620 2160
Brick Paver 200x100x100 MM 1080 1440 1800 2160 2520
Curve Stone Block 300x300x100 MM 240 240 480 480 480

High Production Capacity Machine

The FAM-2520 Supreme is listed for producing fly ash bricks, paver blocks and concrete blocks. Compare the published production figures and product sizes to assess suitability for your manufacturing requirements.
