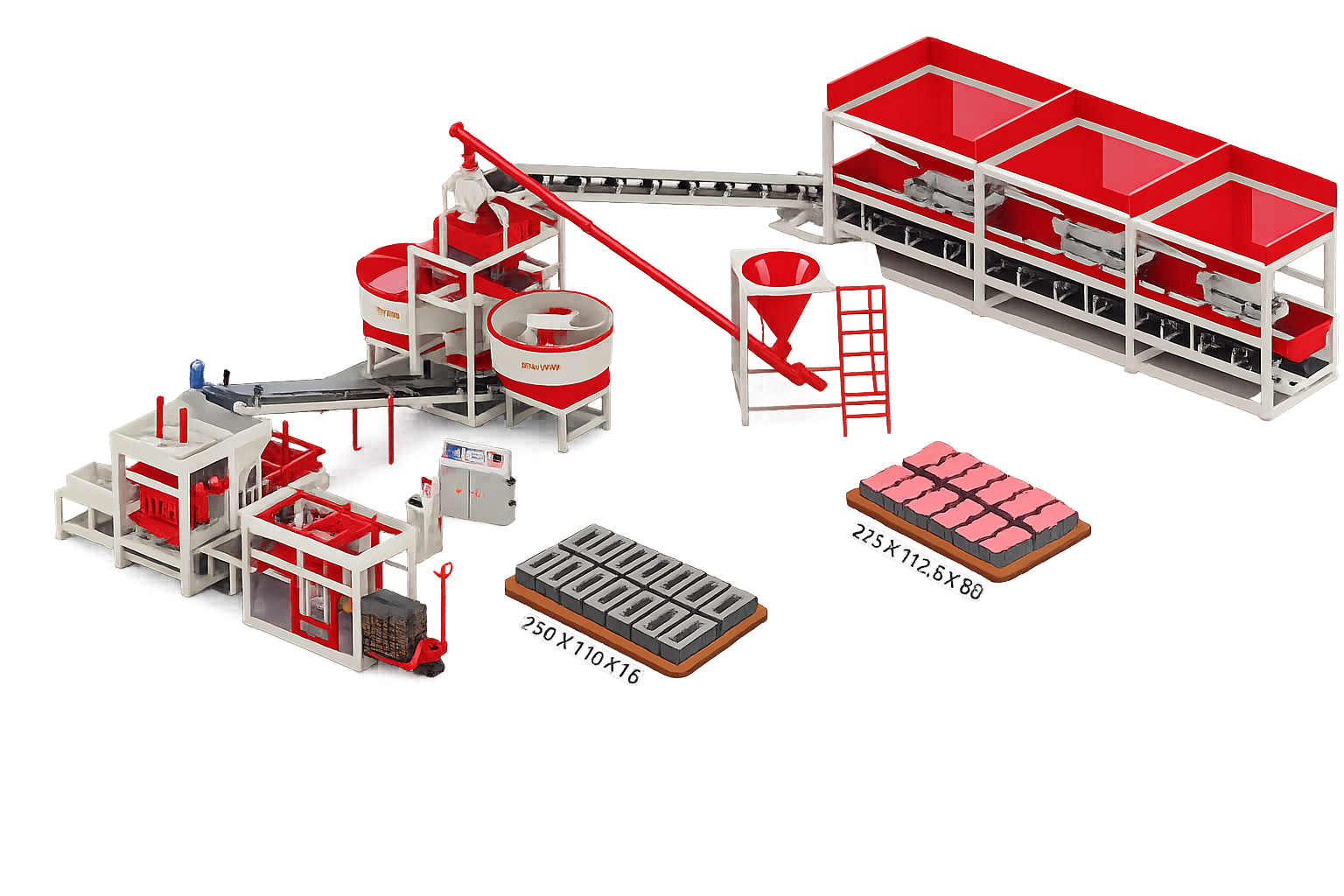

FAM-2520 :: Fully Automatic Fly Ash Brick Making Machine

We are Manufacturer, Supplier of Fully Automatic Fly Ash Brick Making Machine (FAM-2520). This machine has an output of 8 Bricks at one time. Engineered to perfection, the Fully Automatic Fly Ash Brick Making Machine (FAM-2520). comprises of sturdy vibrators, conveyors, pan mixers, etc. This model of Fully Automatic Fly Ash Brick Making Machine (FAM-222) has a production capacity of 11520 Bricks per shift.

Technical Specification

Sr. No.	Particulars	FAM-2520

Sr. No.	Particulars	FAM-2520
1	Bricks Production Capacity per hour	3360 Bricks/Hour
2	Bricks Production Capacity per 8 hour	26000 Bricks/Hour
3	Belt Conveyor Width	500 mm
4	Belt Conveyor Power	2 HP / 1.5 KW
5	Belt Conveyor Feeding Capacity	4 MT / Hour
6	Bricks Press Type	Automatic Hydraulic Bricks Press with HIGH VIBRATION Technology
7	Bricks Press Body	Heavy Duty Window type Body Fabricated from PIPE
8	Bricks Press Capacity	3360 Bricks/Hour
9	Bricks per Stroke	14 Bricks
10	Bricks Size(mm)	230 (L) X 110 (W) X 75 (H) Size Option Available
11	Hydraulic Motor	15 HP / 7.5 KW
12	Trolley Feeder Motor	2 HP / 1.5 KW
13	Hyd. Oil Tank Capacity	450 liter
14	Hydraulic Valves	YUKEN Make / 24 DC
15	High Pressure Pump	YUKEN Make van pump
16	High Flow Pump	YUKEN Make van pump
17	Vibrator Motor	15 hp double vibrator
18	Oil Cooling	Water Cooling 36 inch
19	Control Panel	P L C Based Control Panel
20	Pallet Feeding	Automatic
21	Mixer Type	Pan Mixer
22	Mixer Capacity	400 kgs 2 nos
23	Pan Mixer Motor	7.5 HP / 5.59 KW
24	Pan Mixer Gear Box	PLANETORY Gear Box
25	Mixer Speed	24-28 RPM
26	Mixing Arms	2 Nos. per Mixer
27	Crushing Rollers	2 Nos. per Mixer
28	Pan Mixer Feeding	Manual / Automatic Feeding Available as Optional
29	Pan Mixer Gate	Manual / Hydraulic Gate Available as Optional
30	Pallet Size	850 X 610 X 21 mm
	Total Power	57.5HP / 42.87 KW
	LATEST GERMAN TECHNOLOGY HYDRAULIC + VIBRATION TYPE
	FOUR IN ONE MODEL LIKE BRICK + PAVER BLOCK + SOLID BLOCK + HOLLOW BLOCK

All Bricks & Block Production Capacity With Sizes

Sr No.	Particulars	Production Capacity		PCS/Hr	Mold Rate
		Sizes	PCS/Mould
1	FLY ASH BRICK	230 X100 X75 MM 9 X4 X 3	8	1920	Free
2	FLY ASH BRICK	250 X125 X75 MM 10 X 5 X 3	6	1440	Extra
3	UNI PAVER BLOCK	225 X 112.5 X 80MM	6	1440	Extra
4	I SHAPE PAVER BLOCK	200 X 165 X 60 MM	6	1440	Extra

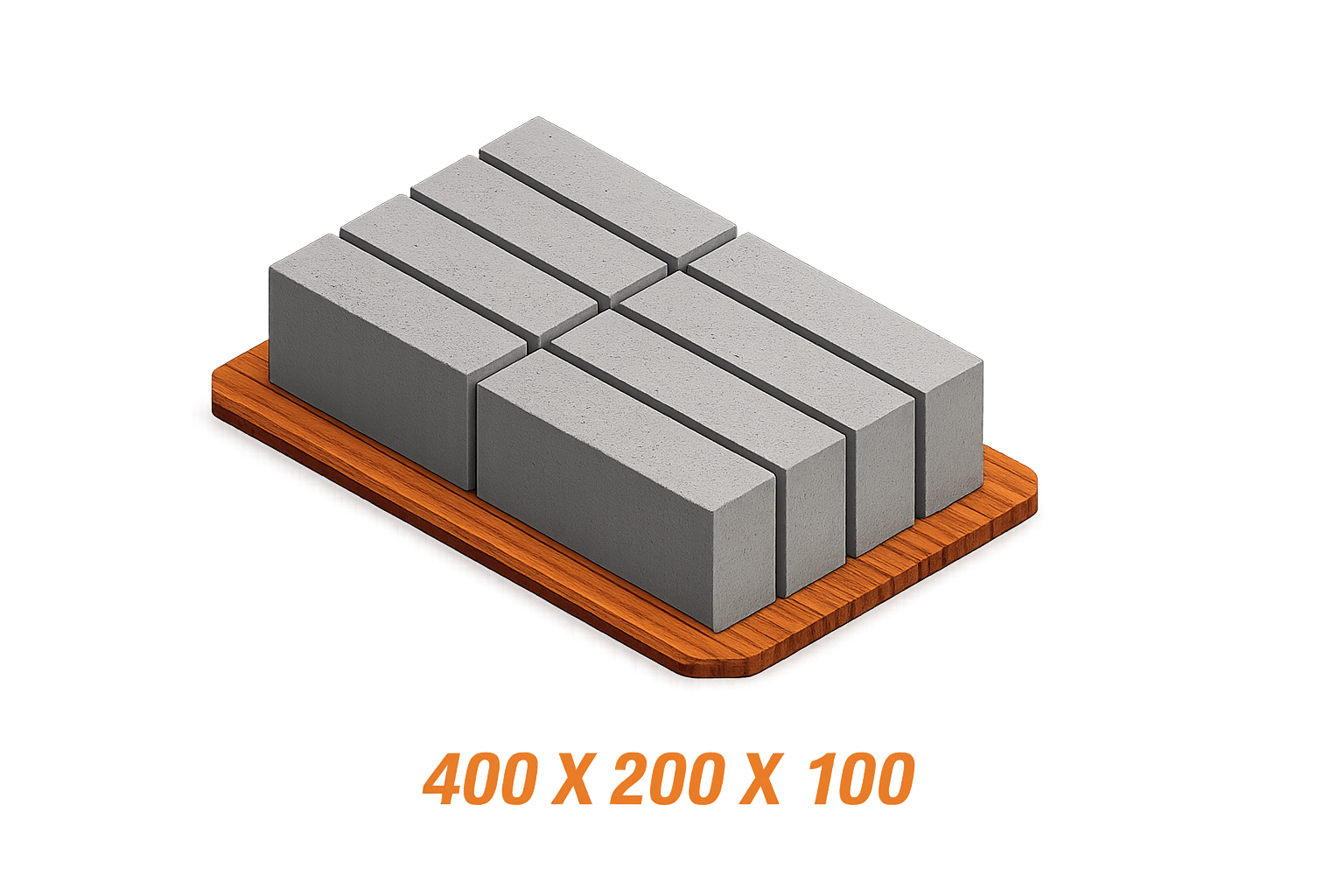

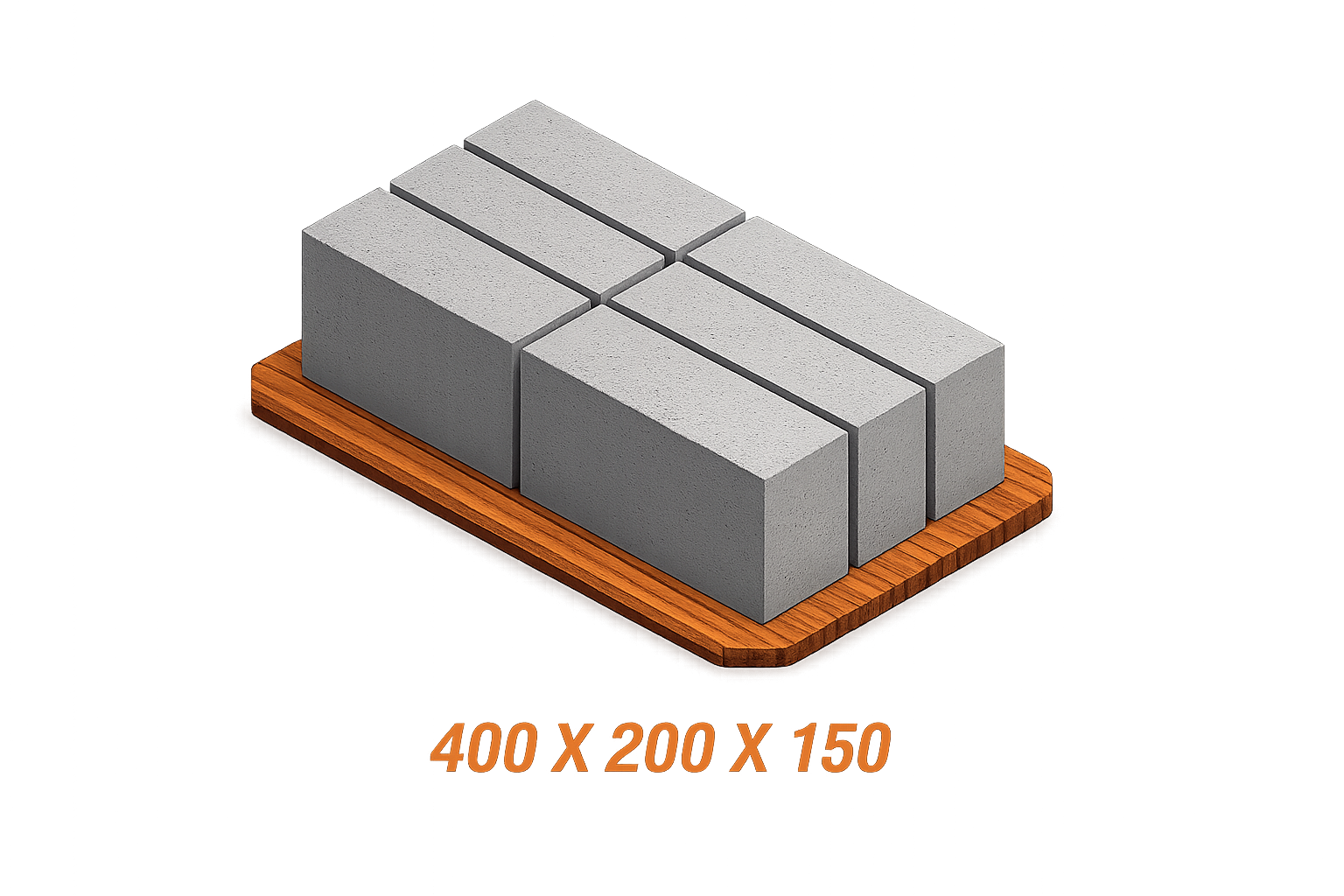

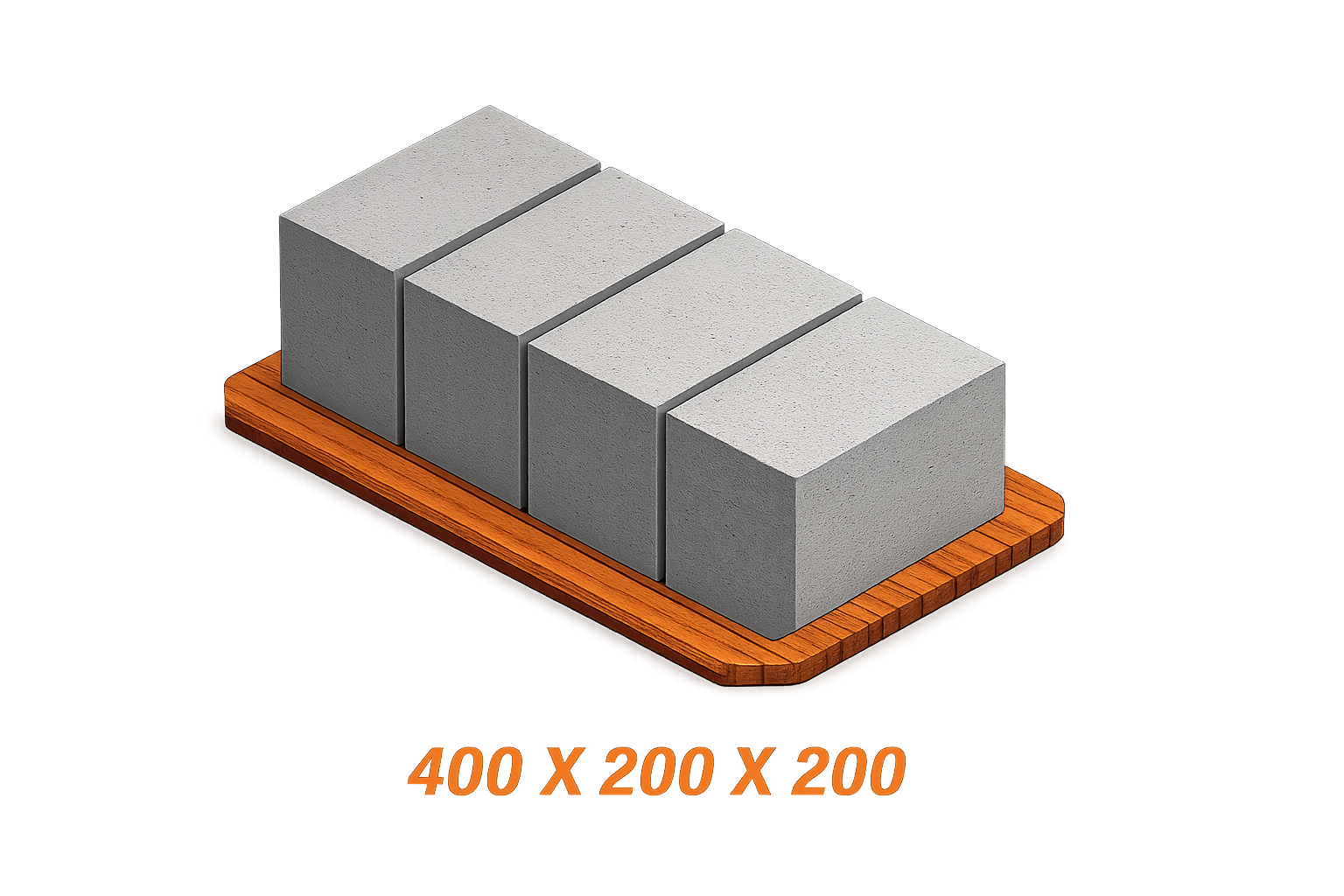

5	SOLID CONCRETE BLOCK	400 X 200 X200MM (16” X 8” X 8” INCH) 400 X 200 X 150MM (16” X 8” X 8” INCH) 400 X 200 X 100MM (16” X 8” X 8” INCH)	2 3 4	480 720 960	Extra

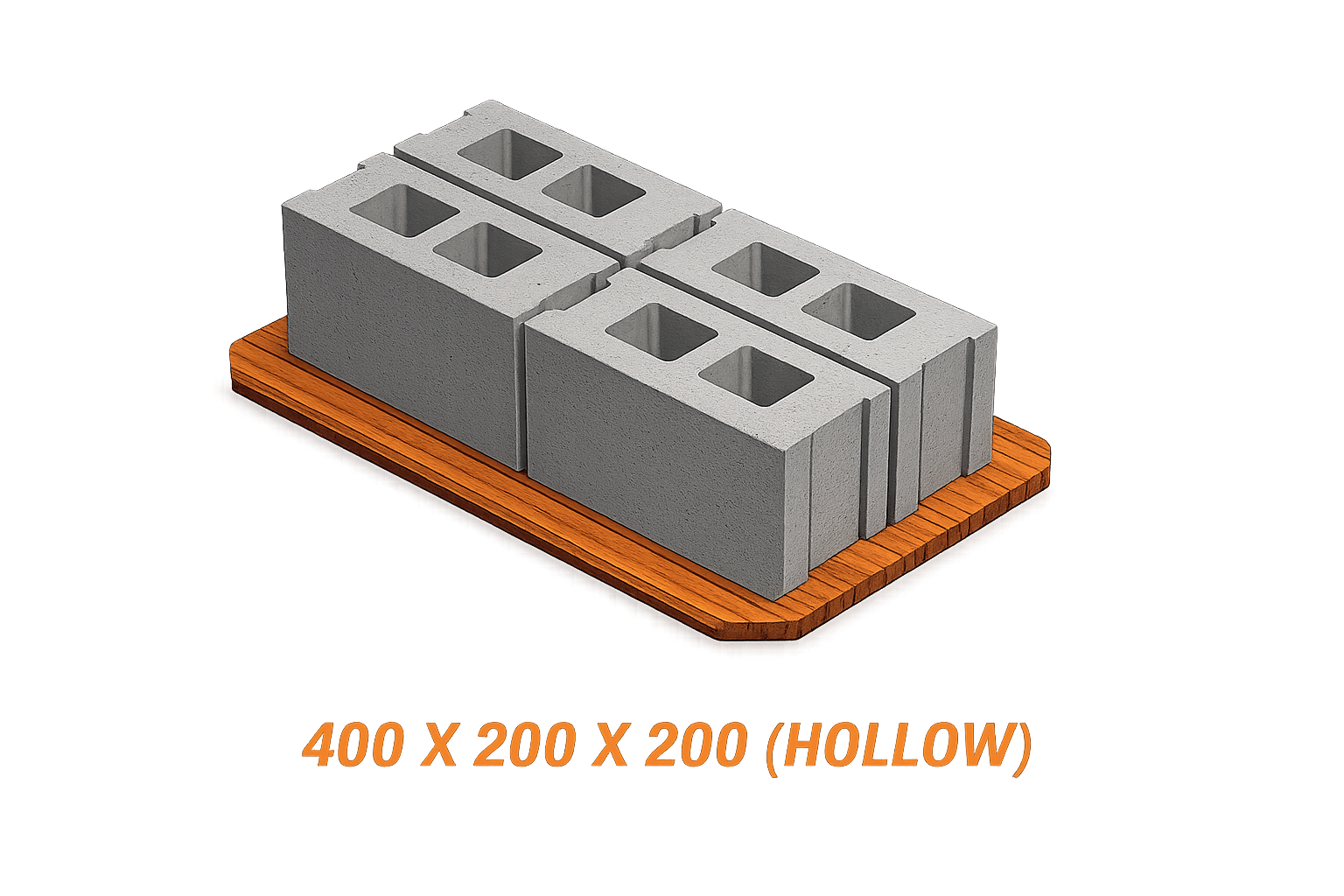

6	HOLLOW CONCRETE BLOCK	390 X 190 X 190 MM	2	480	Extra
7	KERB STONE	300 X 250 X 100 MM	6	1080	8640
