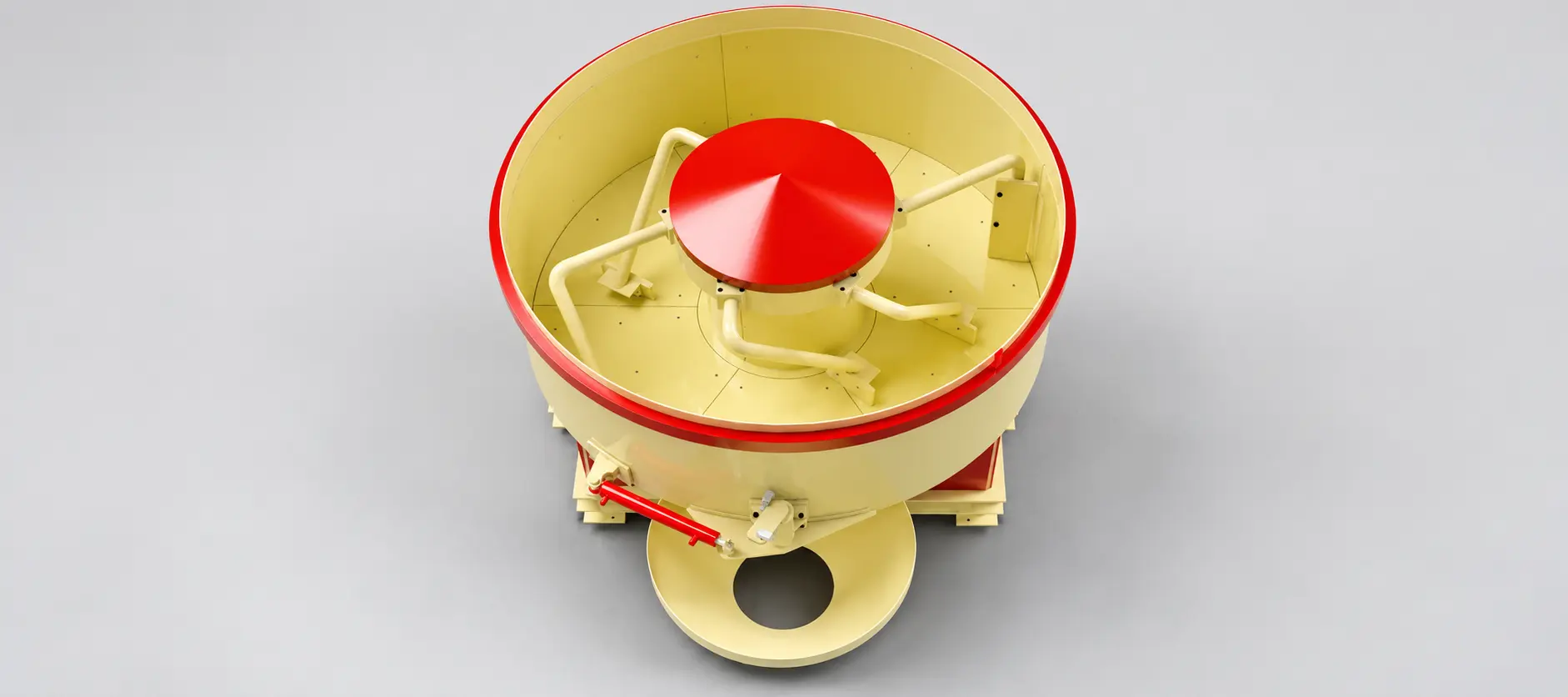

The Turbo Pan Mixer is a high-speed concrete mixing machine specially designed for the production of fly ash bricks, paver blocks, hollow blocks, solid blocks, kerbstones, and other concrete products. Equipped with turbo mixing blades and a rotating pan system, it ensures rapid and homogeneous mixing of cement, fly ash, sand, aggregates, pigments, and additives. Its robust construction and efficient mixing action provide consistent concrete quality, improved product strength, and higher production efficiency.
| Sr. No. | Technical Details | HP/Cap. |
|---|---|---|
| 1 | Machine Type | Turbo Pan Concrete Mixer |
| 2 | Mixing Capacity | 500 – 1200 kgs |
| 3 | Output Capacity | 0.3 – 1.0 m³ per Batch |
| 4 | Pan Diameter | 1000 – 2500 mm |
| 5 | Mixing Time | 30 – 90 Seconds |
| 6 | Drive System | Heavy Duty Geared Motor |
| 7 | Mixing Blades | Turbo Type Wear Resistant Blades |
| 8 | Discharge System | Hydraulic / Manual Bottom Discharge |
| 9 | Liner Material | High Wear Resistant Steel |
| 10 | Control System | Manual / Semi-Automatic / Automatic |
| 11 | Power Requirement | 10 – 50 HP |
| 12 | Operating Voltage | 415V, 50Hz, 3 Phase |
| 13 | Operation Mode | Batch Type Mixing |
