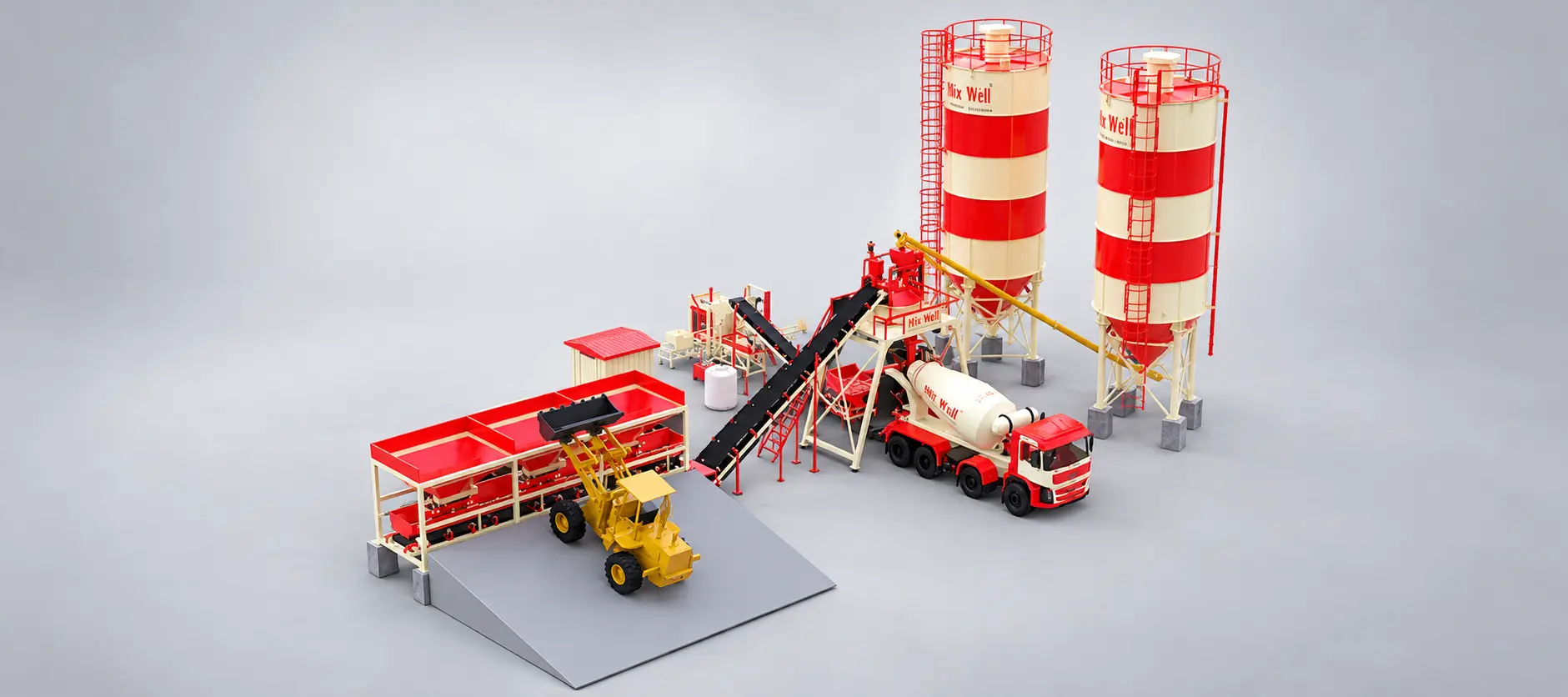

The RMC Plant MI ST 45 is a fully automatic stationary concrete batching plant designed to produce 45 cubic meters of ready-mix concrete per hour. It is ideal for commercial RMC production, infrastructure projects, bridges, highways, industrial construction, and large residential developments. The plant combines aggregate batching, cement storage, water dosing, admixture systems, and a high-efficiency mixer to deliver consistent concrete quality with minimum wastage. PLC-based automation ensures accurate batching and reliable operation.
| Sr. No. | Technical Details | HP/Cap. |
|---|---|---|
| 1 | Model | MI ST 45 |
| 2 | Plant Type | Stationary RMC Batching Plant |
| 3 | Production Capacity | 45 m³/hr |
| 4 | Mixer Type | Turbo Pan Mixer |
| 5 | Mixer Capacity | 0.75 – 1.0 m³ per Batch |
| 6 | Aggregate Storage Bins | 3 Bins |
| 7 | Aggregate Storage Capacity | 40 m³ (Approx.) |
| 8 | Aggregate Weighing | Digital Load Cell System |
| 9 | Cement Weighing | Digital Load Cell System |
| 10 | Water Weighing | Automatic Water Weighing Unit |
| 11 | Admixture System | Automatic Dosing System |
| 12 | Cement Silo Capacity | 50 – 100 Tons |
| 13 | Cement Feeding | Screw Conveyor |
| 14 | Aggregate Feeding | Belt Conveyor |
| 15 | Control System | PLC Based Fully Automatic |
| 16 | Batch Cycle Time | 60 – 90 Seconds |
| 17 | Main Mixer Drive | 30 HP |
| 18 | Total Connected Power | 75 – 80 HP |
| 19 | Suggested DG Set | 100 KVA |
| 20 | Discharge Height | 4.2 Meter |
| 21 | Operating Voltage | 415V, 50Hz, 3 Phase |
| 22 | Control Cabin | Operator Cabin Included |
| 23 | Air Compressor | Pneumatic Valve Operation |
