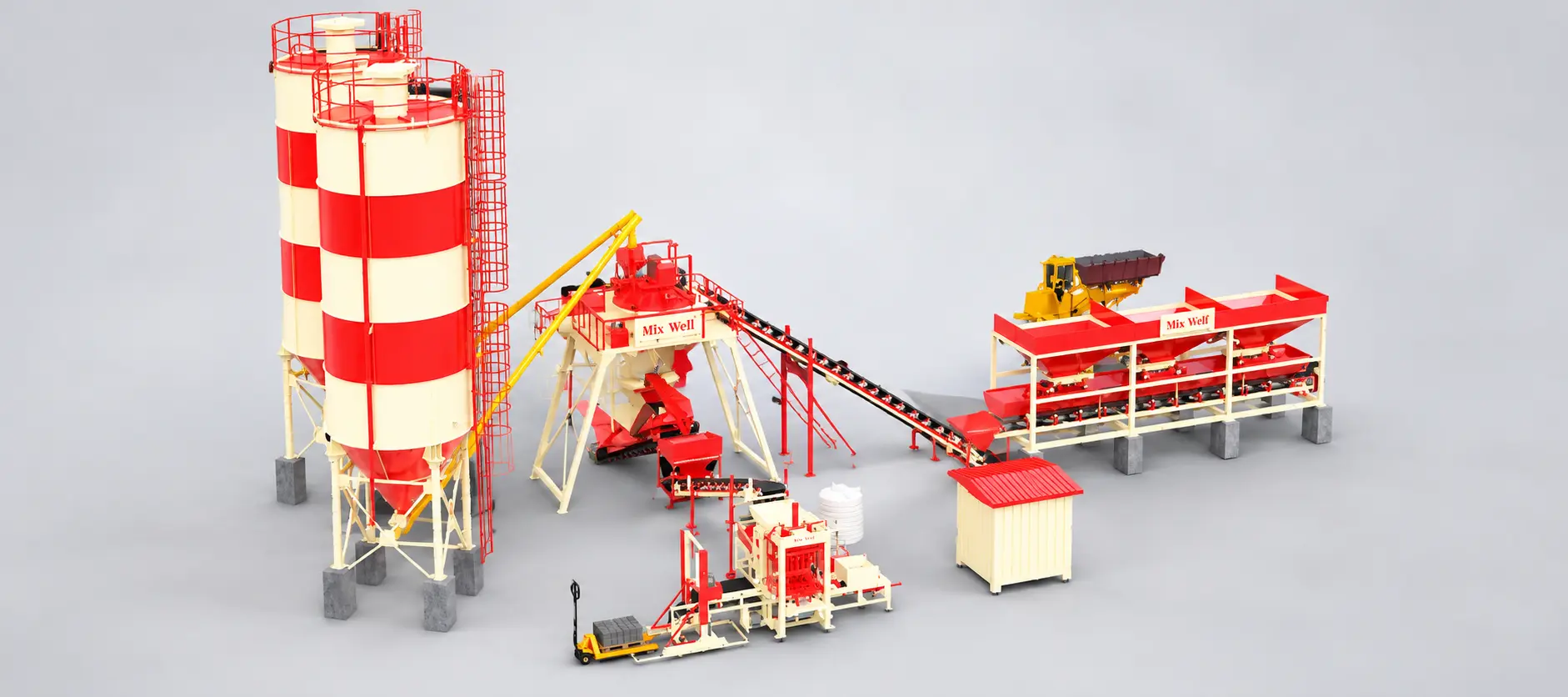

The RMB 36 Block Machine with RMC combines a fully automatic concrete block, fly ash brick and paver block manufacturing system with an integrated Ready Mix Concrete (RMC) batching unit. with a Ready Mix Concrete (RMC) batching unit. The plant is designed for continuous production of high-quality construction blocks using cement, fly ash, sand, aggregates, and additives. With PLC-based automation, hydraulic pressing technology, and high-frequency vibration systems, the machine delivers consistent strength, dimensional accuracy, and high production output. It can manufacture hollow blocks, solid blocks, paver blocks, kerbstones, and other concrete products by changing
| Sr. No. | Parameter | Specification |
|---|---|---|
| 1 | Model | RMB 36 |
| 2 | Machine Type | Fully Automatic Block Machine with RMC Plant |
| 3 | Production System | Hydraulic + Vibration |
| 4 | Control System | PLC Based Automatic Control |
| 5 | Brick Production | 30 - 40 Bricks per Cycle |
| 6 | Paver Production | 30 Pavers per Cycle |
| 7 | Production Capacity | Up to 15,000 - 18,000 Blocks / 8 Hours |
| 8 | Paver Capacity | Up to 12,000 - 15,000 Pavers / 8 Hours |
| 9 | Pallet Size | 750 × 610 × 18 mm |
| 10 | Maximum Product Height | 200 mm |
| 11 | Minimum Product Height | 40 - 50 mm |
| 12 | Hydraulic Pressure | 120 - 150 Bar |
| 13 | Vibration System | Servo / Hydraulic Vibrators |
| 14 | Aggregate Feeding | Automatic Batcher |
| 15 | Mixer Type | Turbo Pan Mixer |
| 16 | RMC Plant Capacity | 30 - 36 m³/hr |
| 17 | Cement Silo Capacity | 50 - 100 Ton |
| 18 | Material Feeding | Belt Conveyor System |
| 19 | Power Requirement | 120 - 150 kW (Approx.) |
| 20 | Labor Requirement | 2 - 3 Operators |
| 21 | Mould Change System | Quick Change Design |
| 22 | Operation Mode | Fully Automatic / Manual Override |
