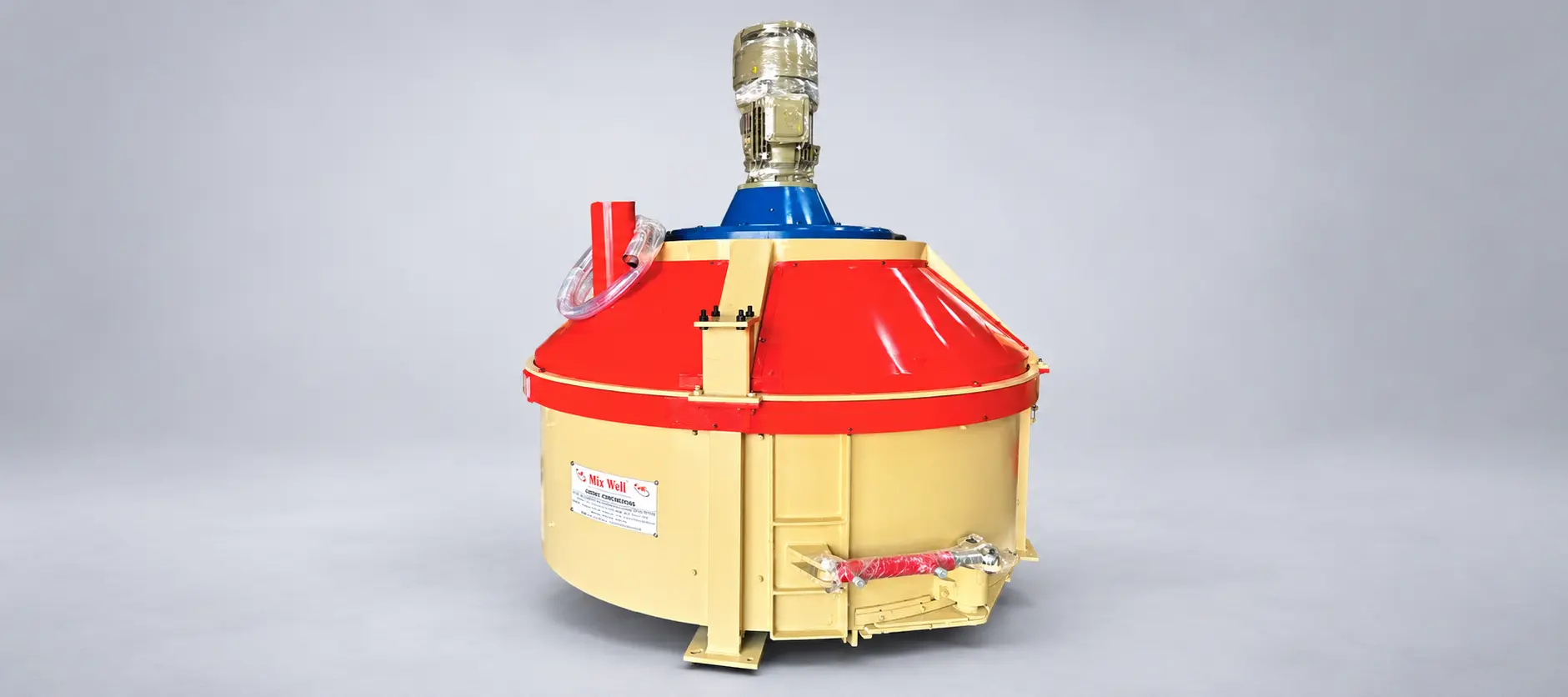

The planetary concrete mixer is designed to produce uniform and consistent concrete mixes for industrial manufacturing applications. It is widely used in the manufacturing of fly ash bricks, paver blocks, hollow blocks, solid blocks, kerbstones, and precast concrete products. The planetary mixing action ensures that all materials are thoroughly blended, resulting in superior concrete quality, enhanced strength, and improved product finish. Its robust design and efficient performance make it suitable for both small and large-scale production plants.
| Sr. No. | Technical Details | HP/Cap. |
|---|---|---|
| 1 | Machine Type | Planetary Concrete Mixer |
| 2 | Mixing Capacity | 350 - 1500 kgs |
| 3 | Output Capacity | 0.3 – 1.0 m³ per Batch |
| 4 | Mixer Drive | Heavy Duty Geared Motor |
| 5 | Mixing Action | Planetary Motion |
| 6 | Mixing Time | 30 – 60 Seconds |
| 7 | Discharge Type | Hydraulic Operated Bottom Discharge |
| 8 | Mixing Arms | Wear Resistant Alloy Steel |
| 9 | Mixing Blades | Replaceable High Strength Blades |
| 10 | Liner Plates | Wear Resistant Replaceable Liners |
| 11 | Water Feeding System | Automatic / Manual |
| 12 | Control System | PLC / Panel Operated |
| 13 | Power Requirement | 15 – 60 HP |
| 14 | Operating Voltage | 415V, 50Hz, 3 Phase |
| 15 | Operation Mode | Automatic / Semi-Automatic |
