FAM 2160 CHAMPION (PREFEEDER)

Hardic Engineering manufactures the FAM 2160 Champion Prefeeder, a fully automatic fly ash brick making machine designed to produce up to 12 bricks per cycle.

Hardic Engineering team supporting automatic brick making machinery
FAM-2160

AUTOMATIC FLY ASH BRICK MAKING MACHINE

Hardic Engineering manufactures the FAM 2160 Champion Prefeeder, a fully automatic fly ash brick making machine designed to produce up to 12 bricks per cycle. The Fly Ash Brick Making Machine (FAM-2160) is expertly engineered. includes heavy-duty vibrators, pan mixers, conveyors, etc. The Fly Ash Brick Making Machine (FAM-2160) model can produce up to 23040 bricks in a single. The Hardic Engineering is one the Leading Manufacturer of automatic fly ash brick making machine in India and we also export the same at Africa, United Arab Emirates, Sri Lanka, Ukraine.

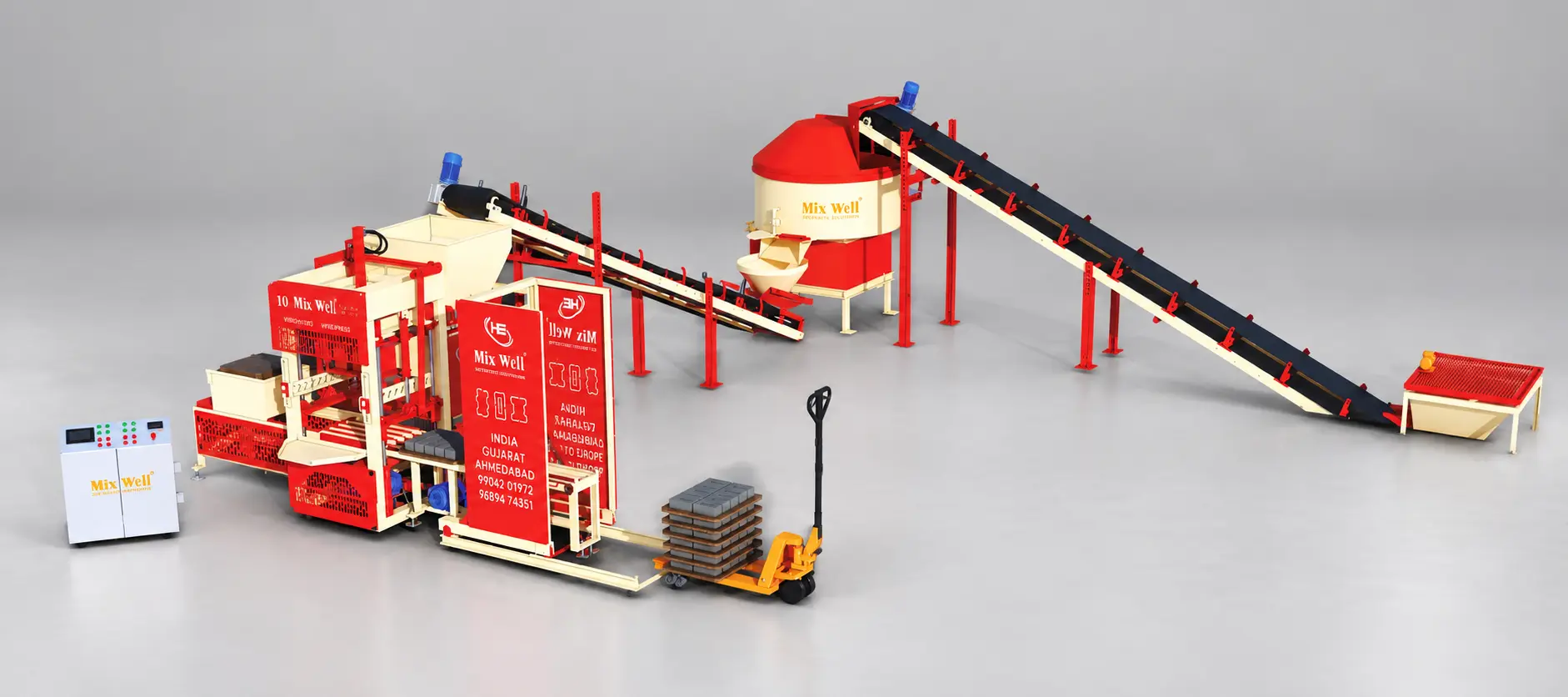

FAM 2160 Champion Prefeeder automatic fly ash brick making machine by Hardic Engineering

Technical Specification

Sr. No. Technical Details HP/Cap.
1 Vibrator Motor 15 HP (7.5 + 7.5) Double Vibrator
2 Oil Cooling Water Cooling 36 inch
3 Control Panel WIFI SCADA SYSTEM + PLC BASED WITH TOUCH SCREEN
4 Pallet Feeding Automatic
5 Mixer Type Pan Mixer
6 Mixer Capacity 1000 kgs 1 nos
7 Pan Mixer Motor 25 HP / 18.64 KW
8 Pan Mixer Gear Box HELICAL BEWEL Gear Box
9 Mixer Speed 24-28 RPM
10 Mixing Arms 2 Nos. per Mixer
11 Crushing Rollers 2 Nos. per Mixer
12 Pan Mixer Feeding Manual / Automatic Feeding Available as Optional
13 Pan Mixer Gate Hydraulic Gate Available as Optional
14 Total Power 68 HP / 50.7 KW
15 Other LATEST GERMAN TECHNOLOGY HYDRAULIC + VIBRATION TYPE + FOUR IN ONE MODEL LIKE BRICK + PAVER BLOCK + SOLID BLOCK + HOLLOW BLOCK
1
Vibrator Motor
15 HP (7.5 + 7.5) Double Vibrator
2
Oil Cooling
Water Cooling 36 inch
3
Control Panel
WIFI SCADA SYSTEM + PLC BASED WITH TOUCH SCREEN
4
Pallet Feeding
Automatic
5
Mixer Type
Pan Mixer
6
Mixer Capacity
1000 kgs 1 nos
7
Pan Mixer Motor
25 HP / 18.64 KW
8
Pan Mixer Gear Box
HELICAL BEWEL Gear Box
9
Mixer Speed
24-28 RPM
10
Mixing Arms
2 Nos. per Mixer
11
Crushing Rollers
2 Nos. per Mixer
12
Pan Mixer Feeding
Manual / Automatic Feeding Available as Optional
13
Pan Mixer Gate
Hydraulic Gate Available as Optional
14
Total Power
68 HP / 50.7 KW
15
Other
LATEST GERMAN TECHNOLOGY HYDRAULIC + VIBRATION TYPE + FOUR IN ONE MODEL LIKE BRICK + PAVER BLOCK + SOLID BLOCK + HOLLOW BLOCK
Latest German Technology: Hydraulic + Vibration Type System
Machine Application: Four in One Model - Brick + Paver Block + Solid Block + Hollow Block


Sr. No. Technical Details HP/Cap.
1 Pallet Size 850 X 610 X 25 mm
2 Brick Production Capacity per Hour 2880 Bricks/Hour
3 Brick Production Capacity per 8-Hour Shift 23,040 Bricks/8-Hour Shift
4 Belt Conveyor Width 500 mm
5 Belt Conveyor Power 2 HP / 1.5 KW
6 Belt Conveyor Feeding Capacity 4 MT / Hour
7 Bricks Press Type Automatic Hydraulic Bricks Press with HIGH VIBRATION Technology
8 Bricks Press Body Heavy Duty Window type Body Fabricated from PIPE
9 Bricks Press Capacity 2880 Bricks/Hour
10 Bricks per Stroke 12 Bricks
11 Bricks Size(mm) 230 (L) X 110 (W) X 75 (H) Size Option Available
12 Hydraulic Motor 15 HP / 7.5 KW
13 Trolley Feeder Motor 2 HP / 1.5 KW
14 Hyd. Oil Tank Capacity 500 LITER
15 Hydraulic Valves YUKEN Make / 24 DC
16 High Pressure Pump YUKEN Make van pump
17 High Flow Pump YUKEN Make van pump
1
Pallet Size
850 X 610 X 25 mm
2
Brick Production Capacity per Hour
2880 Bricks/Hour
3
Brick Production Capacity per 8-Hour Shift
23,040 Bricks/8-Hour Shift
4
Belt Conveyor Width
500 mm
5
Belt Conveyor Power
2 HP / 1.5 KW
6
Belt Conveyor Feeding Capacity
4 MT / Hour
7
Bricks Press Type
Automatic Hydraulic Bricks Press with HIGH VIBRATION Technology
8
Bricks Press Body
Heavy Duty Window type Body Fabricated from PIPE
9
Bricks Press Capacity
2880 Bricks/Hour
10
Bricks per Stroke
12 Bricks
11
Bricks Size(mm)
230 (L) X 110 (W) X 75 (H) Size Option Available
12
Hydraulic Motor
15 HP / 7.5 KW
13
Trolley Feeder Motor
2 HP / 1.5 KW
14
Hyd. Oil Tank Capacity
500 LITER
15
Hydraulic Valves
YUKEN Make / 24 DC
16
High Pressure Pump
YUKEN Make van pump
17
High Flow Pump
YUKEN Make van pump

Brick & Block Capacity & Sizes

Fly ash brick produced using an automatic brick making machine

Fly Ash Brick

Size (mm):230 x 110 x 75
Size (Inch):(9" x 4.25" x 3")
Size (mm):230 x 100 x 75
Size (Inch):(9" x 4" x 3")
PCS/Cavity:12
PC/Hr:2,880
PCS/8 Hr:23,040
Fly ash brick laid on edge for brick production capacity reference

Fly Ash Brick On Edge

Size (mm):230 x 110 x 75
Size (Inch):(9" x 4.25" x 3")
Size (mm):230 x 100 x 75
Size (Inch):(9" x 4" x 3")
PCS/Cavity:16
PC/Hr:3,840
PCS/8 Hr:30,720
Standard fly ash brick size for automatic brick manufacturing

Fly Ash Brick

Size (mm):190 x 90 x 90
Size (Inch):(8" x 4" x 4")
PCS/Cavity:14
PC/Hr:3,360
PCS/8 Hr:26,880
Large-format fly ash brick for brick making machine production

Fly Ash Brick

Size (mm):250 x 120 x 75
Size (Inch):(10" x 5 x 3")
PCS/Cavity:10
PC/Hr:2,400
PCS/8 Hr:19,200
Solid concrete block produced by a hydraulic block making machine

Solid Concrete Block

Size (mm):400 x 200 x 200
Size (Inch):(16" x 8" x 8")
PCS/Cavity:3
PC/Hr:720
PCS/8 Hr:5,760
Medium-size solid concrete block for concrete block production

Solid Concrete Block

Size (mm):400 x 200 x 150
Size (Inch):(16" x 8" x 6")
PCS/Cavity:4
PC/Hr:960
PCS/8 Hr:7,680
Small solid concrete block made on a block making machine

Solid Concrete Block

Size (mm):400 x 200 x 100
Size (Inch):(16" x 8" x 4")
PCS/Cavity:6
PC/Hr:1,440
PCS/8 Hr:11,520
Hollow concrete block for construction and masonry applications

Hollow Block

Size (mm):400 x 200 x 200
Size (Inch):(16" x 8" x 8")
PCS/Cavity:3
PC/Hr:720
PCS/8 Hr:5,760
Zigzag interlocking paver block for paving applications

Zig Zag Paver Block

Size (mm):225 x 112.5 x 60
Size (Inch):225 x 112.5 x 80
PCS/Cavity:12
PC/Hr:2,160
PCS/8 Hr:17,280
I-shaped concrete paver block for outdoor paving

I Shape Paver Block

Size (mm):200 x 165 x 60
Size (Inch):200 x 165 x 80
PCS/Cavity:9
PC/Hr:1,620
PCS/8 Hr:12,960
Brick paver block for paving and landscaping

Brick Paver

Size (mm):200 x 100 x 100
Size (Inch):(8" x 4" x 4")
PCS/Cavity:12
PC/Hr:2,160
PCS/8 Hr:17,280
Concrete kerb stone block for road edging and landscaping

Kerb Stone Block

Size (mm):300 x 300 x 100
Size (Inch):(12" x 12" x 4")
PCS/Cavity:2
PC/Hr:480
PCS/8 Hr:3,840

Compare FAM-2160 With Other Models

Product Size FAM-1080 FAM-1440 FAM-1800 FAM-2160 FAM-2520
Fly Ash Brick 230x110x75 MM
190x90x90 MM
250x120x75 MM 		1440
1920
1440 		1920
2400
1920 		2400
2880
1920 		2880
3360
2400 		3360
3840
2880
Fly Ash Brick on Edge 230x110x75 MM 2400 2880 3360 3840 4320
Solid Concrete Block 400x200x200 MM
400x200x150 MM
400x200x100 MM 		480
480
720 		480
720
960 		720
960
1200 		720
960
1440 		960
1440
1920
Hollow Block 400x200x200 MM 480 480 720 720 960
Zigzag Paver 225x112.5x60 MM 1080 1440 1800 2160 2520
I Shape Paver 200x165x60 MM 720 1080 1440 1620 2160
Brick Paver 200x100x100 MM 1080 1440 1800 2160 2520
Curve Stone Block 300x300x100 MM 240 240 480 480 480

High Production Capacity Machine

The FAM 2160 Champion supports high-output production of fly ash bricks, paver blocks and concrete blocks, with actual output depending on product size and operating conditions.
