FAM 1800 CHAMPION (PREFEEDER)

The FAM 1800 Champion Prefeeder is an automatic fly ash brick making machine designed to produce up to 10 bricks per cycle.

Hardic Engineering team and brick making machinery expertise
FAM-1800

AUTOMATIC FLY ASH BRICK MAKING MACHINE

The FAM 1800 Champion Prefeeder is an automatic fly ash brick making machine designed to produce up to 10 bricks per cycle. Expert engineering went into creating the Fully Automatic Fly Ash Brick Making Machine (FAM-1800). Comprises conveyors, pan mixers, heavy-duty vibrators, etc. The Fully Automatic Fly Ash Brick Making Machine (FAM-1800) model can produce 19200 bricks in a shift. The Hardic Engineering is one the Leading Manufacturer of automatic fly ash brick making machine in India and we also export the same at Africa, United Arab Emirates, Sri Lanka, Ukraine.

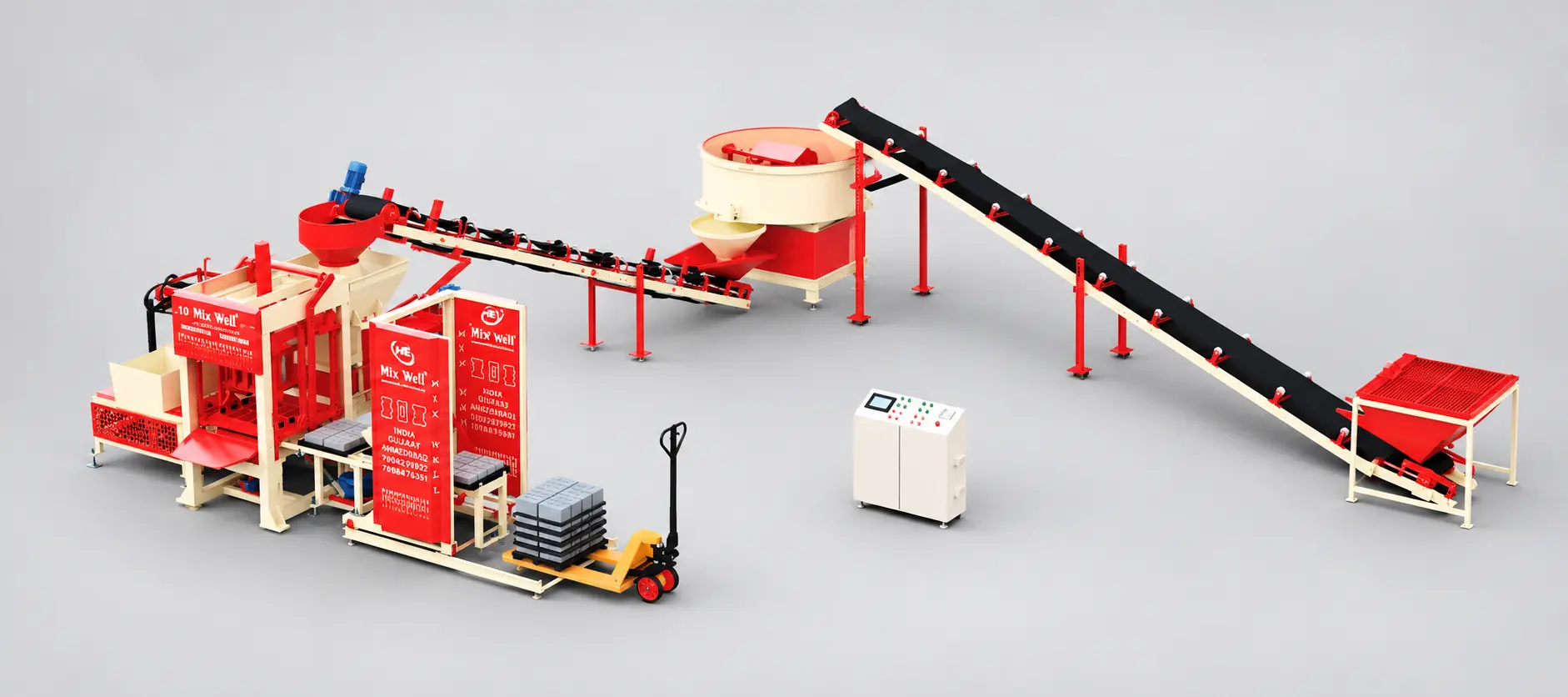

FAM 1800 Champion Prefeeder automatic fly ash brick making machine by Hardic Engineering

Technical Specification

Sr. No. Technical Details HP/Cap.
1 Vibrator Motor 10 HP (5 + 5) Double Vibrator
2 Oil Cooling Water Cooling 36 inch
3 Control Panel WIFI SCADA SYSTEM + PLC BASED WITH TOUCH SCREEN
4 Pallet Feeding Automatic
5 Mixer Type Pan Mixer
6 Mixer Capacity 800 kgs 1 nos
7 Pan Mixer Motor 20 HP / 14.92 KW
8 Pan Mixer Gear Box HELICAL BEWEL Gear Box
9 Mixer Speed 24-28 RPM
10 Mixing Arms 2 Nos. per Mixer
11 Crushing Rollers 2 Nos. per Mixer
12 Pan Mixer Feeding Manual / Automatic Feeding Available as Optional
13 Pan Mixer Gate Manual / Hydraulic Gate Available as Optional
14 Total Power 54 HP / 40.26 KW
15 Other LATEST GERMAN TECHNOLOGY HYDRAULIC + VIBRATION TYPE + FOUR IN ONE MODEL LIKE BRICK + PAVER BLOCK + SOLID BLOCK + HOLLOW BLOCK
1
Vibrator Motor
10 HP (5 + 5) Double Vibrator
2
Oil Cooling
Water Cooling 36 inch
3
Control Panel
WIFI SCADA SYSTEM + PLC BASED WITH TOUCH SCREEN
4
Pallet Feeding
Automatic
5
Mixer Type
Pan Mixer
6
Mixer Capacity
800 kgs 1 nos
7
Pan Mixer Motor
20 HP / 14.92 KW
8
Pan Mixer Gear Box
HELICAL BEWEL Gear Box
9
Mixer Speed
24-28 RPM
10
Mixing Arms
2 Nos. per Mixer
11
Crushing Rollers
2 Nos. per Mixer
12
Pan Mixer Feeding
Manual / Automatic Feeding Available as Optional
13
Pan Mixer Gate
Manual / Hydraulic Gate Available as Optional
14
Total Power
54 HP / 40.26 KW
15
Other
LATEST GERMAN TECHNOLOGY HYDRAULIC + VIBRATION TYPE + FOUR IN ONE MODEL LIKE BRICK + PAVER BLOCK + SOLID BLOCK + HOLLOW BLOCK
Latest German Technology: Hydraulic + Vibration Type System
Machine Application: Four in One Model - Brick + Paver Block + Solid Block + Hollow Block


Sr. No. Technical Details HP/Cap.
1 Pallet Size 750 X 610 X 18 MM
2 Bricks Production Capacity per hour 2400 Bricks/Hour
3 Brick Production Capacity per 8-hour Shift 19,200 Bricks/8-Hour Shift
4 Belt Conveyor Width 500 mm
5 Belt Conveyor Power 2 HP / 1.5 KW
6 Belt Conveyor Feeding Capacity 4 MT / Hour
7 Bricks Press Type Automatic Hydraulic Bricks Press with HIGH VIBRATION Technology
8 Bricks Press Body Heavy Duty Window type Body Fabricated from PIPE
9 Bricks Press Capacity 2400 Bricks/Hour
10 Bricks per Stroke 10 Bricks
11 Bricks Size(mm) 230 (L) X 110 (W) X 75 (H) Size Option Available
12 Hydraulic Motor 10 HP / 7.5 KW
13 Trolley Feeder Motor 2 HP / 1.5 KW
14 Hyd. Oil Tank Capacity 500 LITER
15 Hydraulic Valves YUKEN Make / 24 DC
16 High Pressure Pump YUKEN Make van pump
17 High Flow Pump YUKEN Make van pump
1
Pallet Size
750 X 610 X 18 MM
2
Bricks Production Capacity per hour
2400 Bricks/Hour
3
Brick Production Capacity per 8-hour Shift
19,200 Bricks/8-Hour Shift
4
Belt Conveyor Width
500 mm
5
Belt Conveyor Power
2 HP / 1.5 KW
6
Belt Conveyor Feeding Capacity
4 MT / Hour
7
Bricks Press Type
Automatic Hydraulic Bricks Press with HIGH VIBRATION Technology
8
Bricks Press Body
Heavy Duty Window type Body Fabricated from PIPE
9
Bricks Press Capacity
2400 Bricks/Hour
10
Bricks per Stroke
10 Bricks
11
Bricks Size(mm)
230 (L) X 110 (W) X 75 (H) Size Option Available
12
Hydraulic Motor
10 HP / 7.5 KW
13
Trolley Feeder Motor
2 HP / 1.5 KW
14
Hyd. Oil Tank Capacity
500 LITER
15
Hydraulic Valves
YUKEN Make / 24 DC
16
High Pressure Pump
YUKEN Make van pump
17
High Flow Pump
YUKEN Make van pump

Brick & Block Capacity & Sizes

Fly ash brick produced using an automatic brick making machine

Fly Ash Brick

Size (mm):230 x 110 x 75
Size (Inch):(9" x 4.25" x 3")
Size (mm):230 x 100 x 75
Size (Inch):(9" x 4" x 3")
PCS/Cavity:10
PC/Hr:2,400
PCS/8 Hr:19,200
Fly ash brick laid on edge for masonry applications

Fly Ash Brick On Edge

Size (mm):230 x 110 x 75
Size (Inch):(9" x 4.25" x 3")
Size (mm):230 x 100 x 75
Size (Inch):(9" x 4" x 3")
PCS/Cavity:14
PC/Hr:3,360
PCS/8 Hr:26,880
Standard fly ash brick for construction applications

Fly Ash Brick

Size (mm):190 x 90 x 90
Size (Inch):(8" x 4" x 4")
PCS/Cavity:12
PC/Hr:2,880
PCS/8 Hr:23,040
Large-format fly ash brick for construction

Fly Ash Brick

Size (mm):250 x 120 x 75
Size (Inch):(10" x 5 x 3")
PCS/Cavity:8
PC/Hr:1,920
PCS/8 Hr:15,360
Solid concrete block for building construction

Solid Concrete Block

Size (mm):400 x 200 x 200
Size (Inch):(16" x 8" x 8")
PCS/Cavity:3
PC/Hr:720
PCS/8 Hr:5,760
Solid concrete block in alternate height for masonry work

Solid Concrete Block

Size (mm):400 x 200 x 150
Size (Inch):(16" x 8" x 6")
PCS/Cavity:4
PC/Hr:960
PCS/8 Hr:7,680
Solid concrete block in a compact size for construction

Solid Concrete Block

Size (mm):400 x 200 x 100
Size (Inch):(16" x 8" x 4")
PCS/Cavity:5
PC/Hr:1,200
PCS/8 Hr:9,600
Hollow concrete block for lightweight wall construction

Hollow Block

Size (mm):400 x 200 x 200
Size (Inch):(16" x 8" x 8")
PCS/Cavity:3
PC/Hr:720
PCS/8 Hr:5,760
Zigzag interlocking paver block for paving surfaces

Zig Zag Paver Block

Size (mm):225 x 112.5 x 60
Size (Inch):225 x 112.5 x 80
PCS/Cavity:10
PC/Hr:1,800
PCS/8 Hr:14,400
I-shaped concrete paver block for interlocking pavements

I Shape Paver Block

Size (mm):200 x 165 x 60
Size (Inch):200 x 165 x 80
PCS/Cavity:8
PC/Hr:1,440
PCS/8 Hr:11,520
Brick paver for outdoor paving applications

Brick Paver

Size (mm):200 x 100 x 100
Size (Inch):(8" x 4" x 4")
PCS/Cavity:10
PC/Hr:1,800
PCS/8 Hr:14,400
Concrete kerb stone block for road and pavement edging

Kerb Stone Block

Size (mm):300 x 300 x 100
Size (Inch):(12" x 12" x 4")
PCS/Cavity:2
PC/Hr:480
PCS/8 Hr:3,840

Compare FAM-1800 With Other Models

Product Size FAM-1080 FAM-1440 FAM-1800 FAM-2160 FAM-2520
Fly Ash Brick 230x110x75 MM
190x90x90 MM
250x120x75 MM 		1440
1920
1440 		1920
2400
1920 		2400
2880
1920 		2880
3360
2400 		3360
3840
2880
Fly Ash Brick on Edge 230x110x75 MM 2400 2880 3360 3840 4320
Solid Concrete Block 400x200x200 MM
400x200x150 MM
400x200x100 MM 		480
480
720 		480
720
960 		720
960
1200 		720
960
1440 		960
1440
1920
Hollow Block 400x200x200 MM 480 480 720 720 960
Zigzag Paver 225x112.5x60 MM 1080 1440 1800 2160 2520
I Shape Paver 200x165x60 MM 720 1080 1440 1620 2160
Brick Paver 200x100x100 MM 1080 1440 1800 2160 2520
Curve Stone Block 300x300x100 MM 240 240 480 480 480

High Production Capacity Machine

The FAM 1800 Champion Prefeeder supports production of fly ash bricks, paver blocks and concrete blocks. Contact Hardic Engineering to discuss your production requirements.
