FAM 1440 TITAN

The FAM-1440 Titan is designed for automated production of fly ash bricks, paver blocks and concrete blocks, with dependable hydraulic pressing and vibration.

Hardic Engineering team supporting brick making machine solutions
FAM-1440

AUTOMATIC FLY ASH BRICK MAKING MACHINE

Hardic Engineering manufactures and supplies the fully automatic FAM-1440 Titan fly ash brick making machine for producing fly ash bricks and solid concrete blocks. Designed for industrial production, it combines hydraulic pressing with high-vibration technology and can form up to eight bricks per stroke. The system can be configured with supporting equipment such as pan mixers and conveyors. Based on the listed specifications, its stated production capacity is up to 1,920 bricks per hour, or 15,360 bricks in an eight-hour shift.

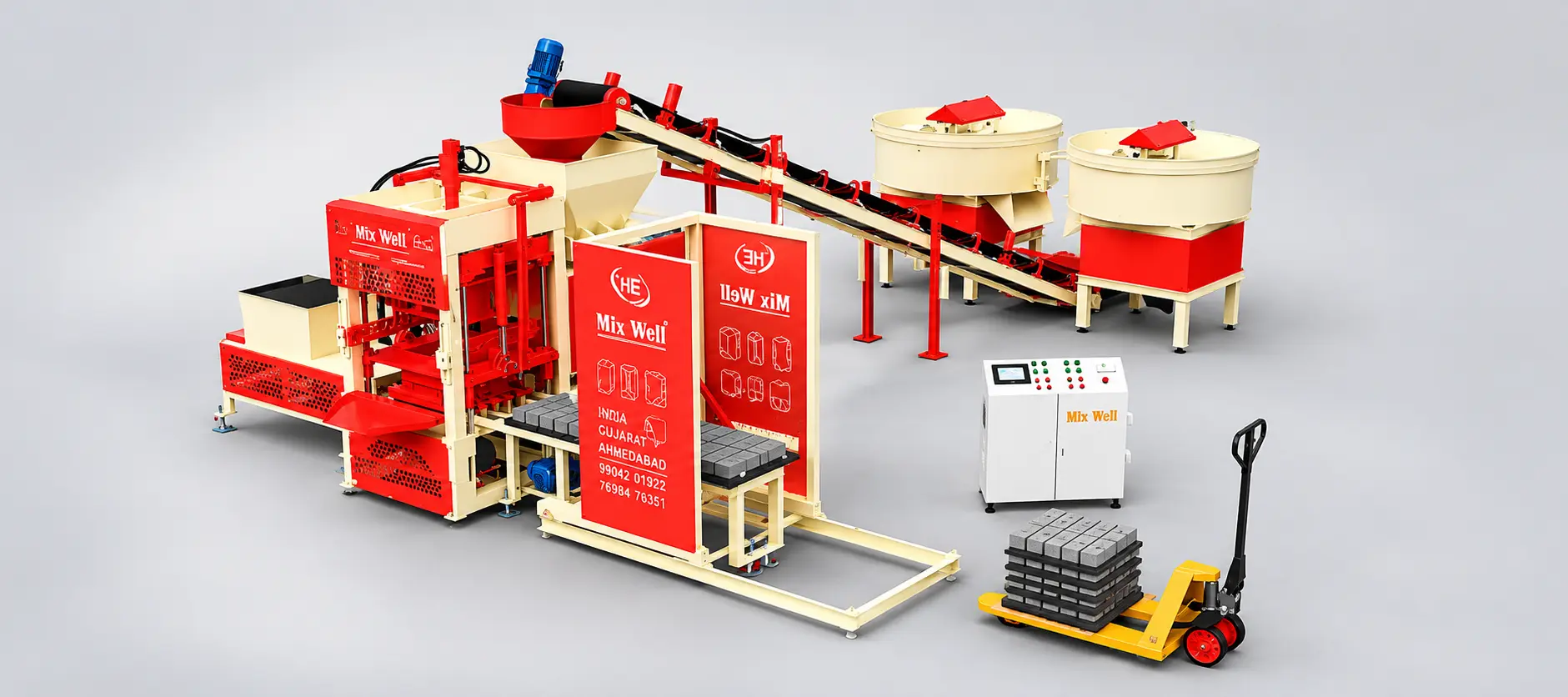

Automatic hydraulic fly ash brick making machine for brick and concrete block production

Technical Specification

Sr. No. Technical Details HP/Cap.
1 Vibrator Motor 7.5 HP Vibration Motor
2 Oil Cooling Water Cooling 36 inch
3 Control Panel WIFI SCADA SYSTEM + PLC BASED WITH TOUCH SCREEN
4 Pallet Feeding Automatic
5 Mixer Type Pan Mixer
6 Mixer Capacity 400 kgs 2 nos
7 Pan Mixer Motor 10 HP / 7.45 KW
8 Pan Mixer Gear Box HELICAL BEWEL Gear Box
9 Mixer Speed 24-28 RPM
10 Mixing Arms 2 Nos. per Mixer
11 Crushing Rollers 2 Nos. per Mixer
12 Pan Mixer Feeding Manual / Automatic Feeding Available as Optional
13 Pan Mixer Gate Manual / Hydraulic Gate Available as Optional
14 Total Power 44.5 HP / 33.18 KW
15 Other LATEST GERMAN TECHNOLOGY HYDRAULIC + VIBRATION TYPE + FOUR IN ONE MODEL LIKE BRICK + PAVER BLOCK + SOLID BLOCK + HOLLOW BLOCK
1
Vibrator Motor
7.5 HP Vibration Motor
2
Oil Cooling
Water Cooling 36 inch
3
Control Panel
WIFI SCADA SYSTEM + PLC BASED WITH TOUCH SCREEN
4
Pallet Feeding
Automatic
5
Mixer Type
Pan Mixer
6
Mixer Capacity
400 kgs 2 nos
7
Pan Mixer Motor
10 HP / 7.45 KW
8
Pan Mixer Gear Box
HELICAL BEWEL Gear Box
9
Mixer Speed
24-28 RPM
10
Mixing Arms
2 Nos. per Mixer
11
Crushing Rollers
2 Nos. per Mixer
12
Pan Mixer Feeding
Manual / Automatic Feeding Available as Optional
13
Pan Mixer Gate
Manual / Hydraulic Gate Available as Optional
14
Total Power
44.5 HP / 33.18 KW
15
Other
LATEST GERMAN TECHNOLOGY HYDRAULIC + VIBRATION TYPE + FOUR IN ONE MODEL LIKE BRICK + PAVER BLOCK + SOLID BLOCK + HOLLOW BLOCK
Latest German Technology: Hydraulic + Vibration Type System
Machine Application: Four in One Model - Brick + Paver Block + Solid Block + Hollow Block


Technical Specification

Sr. No. Technical Details HP/Cap.
1 Pallet Size 610 X 610 X 18 MM
2 Bricks Production Capacity per hour 1920 Bricks/Hour
3 Bricks Production Capacity per 8 hour 15,360 Bricks/8 Hours
4 Belt Conveyor Width 500 mm
5 Belt Conveyor Power 2 HP / 1.5 KW
6 Belt Conveyor Feeding Capacity 4 MT / Hour
7 Bricks Press Type Automatic Hydraulic Bricks Press with HIGH VIBRATION Technology
8 Bricks Press Body Heavy Duty Window type Body Fabricated from PIPE
9 Bricks Press Capacity 1920 Bricks/Hour
10 Bricks per Stroke 8 Bricks
11 Bricks Size(mm) 230 (L) X 110 (W) X 75 (H) Size Option Available
12 Hydraulic Motor 10 HP / 7.5 KW
13 Trolley Feeder Motor 2 HP / 1.5 KW
14 Hyd. Oil Tank Capacity 500 LITER
15 Hydraulic Valves YUKEN Make / 24 DC
16 High Pressure Pump YUKEN Make van pump
17 High Flow Pump YUKEN Make van pump
1
Pallet Size
610 X 610 X 18 MM
2
Bricks Production Capacity per hour
1920 Bricks/Hour
3
Bricks Production Capacity per 8 hour
15360 Bricks/Hour
4
Belt Conveyor Width
500 mm
5
Belt Conveyor Power
2 HP / 1.5 KW
6
Belt Conveyor Feeding Capacity
4 MT / Hour
7
Bricks Press Type
Automatic Hydraulic Bricks Press with HIGH VIBRATION Technology
8
Bricks Press Body
Heavy Duty Window type Body Fabricated from PIPE
9
Bricks Press Capacity
1920 Bricks/Hour
10
Bricks per Stroke
8 Bricks
11
Bricks Size(mm)
230 (L) X 110 (W) X 75 (H) Size Option Available
12
Hydraulic Motor
10 HP / 7.5 KW
13
Trolley Feeder Motor
2 HP / 1.5 KW
14
Hyd. Oil Tank Capacity
500 LITER
15
Hydraulic Valves
YUKEN Make / 24 DC
16
High Pressure Pump
YUKEN Make van pump
17
High Flow Pump
YUKEN Make van pump

Brick & Block Capacity & Sizes

Fly ash brick produced by an automatic brick making machine

Fly Ash Brick

Size (mm):230 x 110 x 75
Size (Inch):(9" x 4.25" x 3")
Size (mm):230 x 100 x 75
Size (Inch):(9" x 4" x 3")
PCS/Cavity:8
PC/Hr:1,920
PCS/8 Hr:15,360
Fly ash brick positioned on edge for brick machine capacity reference

Fly Ash Brick On Edge

Size (mm):230 x 110 x 75
Size (Inch):(9" x 4.25" x 3")
Size (mm):230 x 100 x 75
Size (Inch):(9" x 4" x 3")
PCS/Cavity:12
PC/Hr:2,880
PCS/8 Hr:23,040
Standard fly ash brick for automatic brick production

Fly Ash Brick

Size (mm):190 x 90 x 90
Size (Inch):(8" x 4" x 4")
PCS/Cavity:10
PC/Hr:2,400
PCS/8 Hr:19,200
Large-format fly ash brick produced using a brick making machine

Fly Ash Brick

Size (mm):250 x 120 x 75
Size (Inch):(10" x 5 x 3")
PCS/Cavity:8
PC/Hr:1,920
PCS/8 Hr:15,360
Solid concrete block produced by a concrete block making machine

Solid Concrete Block

Size (mm):400 x 200 x 200
Size (Inch):(16" x 8" x 8")
PCS/Cavity:2
PC/Hr:480
PCS/8 Hr:3,840
Solid concrete block in 400 by 200 by 150 millimetre size

Solid Concrete Block

Size (mm):400 x 200 x 150
Size (Inch):(16" x 8" x 6")
PCS/Cavity:3
PC/Hr:720
PCS/8 Hr:5,760
Solid concrete block in 400 by 200 by 100 millimetre size

Solid Concrete Block

Size (mm):400 x 200 x 100
Size (Inch):(16" x 8" x 4")
PCS/Cavity:4
PC/Hr:960
PCS/8 Hr:7,680
Hollow concrete block for construction applications

Hollow Block

Size (mm):400 x 200 x 200
Size (Inch):(16" x 8" x 8")
PCS/Cavity:2
PC/Hr:480
PCS/8 Hr:3,840
Zigzag interlocking paver block for paving applications

Zig Zag Paver Block

Size (mm):225 x 112.5 x 60
Size (Inch):225 x 112.5 x 80
PCS/Cavity:6
PC/Hr:1,440
PCS/8 Hr:11,520
I-shaped interlocking paver block for outdoor paving

I Shape Paver Block

Size (mm):200 x 165 x 60
Size (Inch):200 x 165 x 80
PCS/Cavity:6
PC/Hr:1,080
PCS/8 Hr:8,640
Brick-shaped paver for paving and landscaping

Brick Paver

Size (mm):200 x 100 x 100
Size (Inch):(8" x 4" x 4")
PCS/Cavity:8
PC/Hr:1,440
PCS/8 Hr:11,520
Concrete kerb stone block for road and pathway edges

Kerb Stone Block

Size (mm):300 x 300 x 100
Size (Inch):(12" x 12" x 4")
PCS/Cavity:1
PC/Hr:240
PCS/8 Hr:1,920

Compare FAM-1440 With Other Models

Product Size FAM-1080 FAM-1440 FAM-1800 FAM-2160 FAM-2520
Fly Ash Brick 230x110x75 MM
190x90x90 MM
250x120x75 MM 		1440
1920
1440 		1920
2400
1920 		2400
2880
1920 		2880
3360
2400 		3360
3840
2880
Fly Ash Brick on Edge 230x110x75 MM 2400 2880 3360 3840 4320
Solid Concrete Block 400x200x200 MM
400x200x150 MM
400x200x100 MM 		480
480
720 		480
720
960 		720
960
1200 		720
960
1440 		960
1440
1920
Hollow Block 400x200x200 MM 480 480 720 720 960
Zigzag Paver 225x112.5x60 MM 1080 1440 1800 2160 2520
I Shape Paver 200x165x60 MM 720 1080 1440 1620 2160
Brick Paver 200x100x100 MM 1080 1440 1800 2160 2520
Curve Stone Block 300x300x100 MM 240 240 480 480 480
