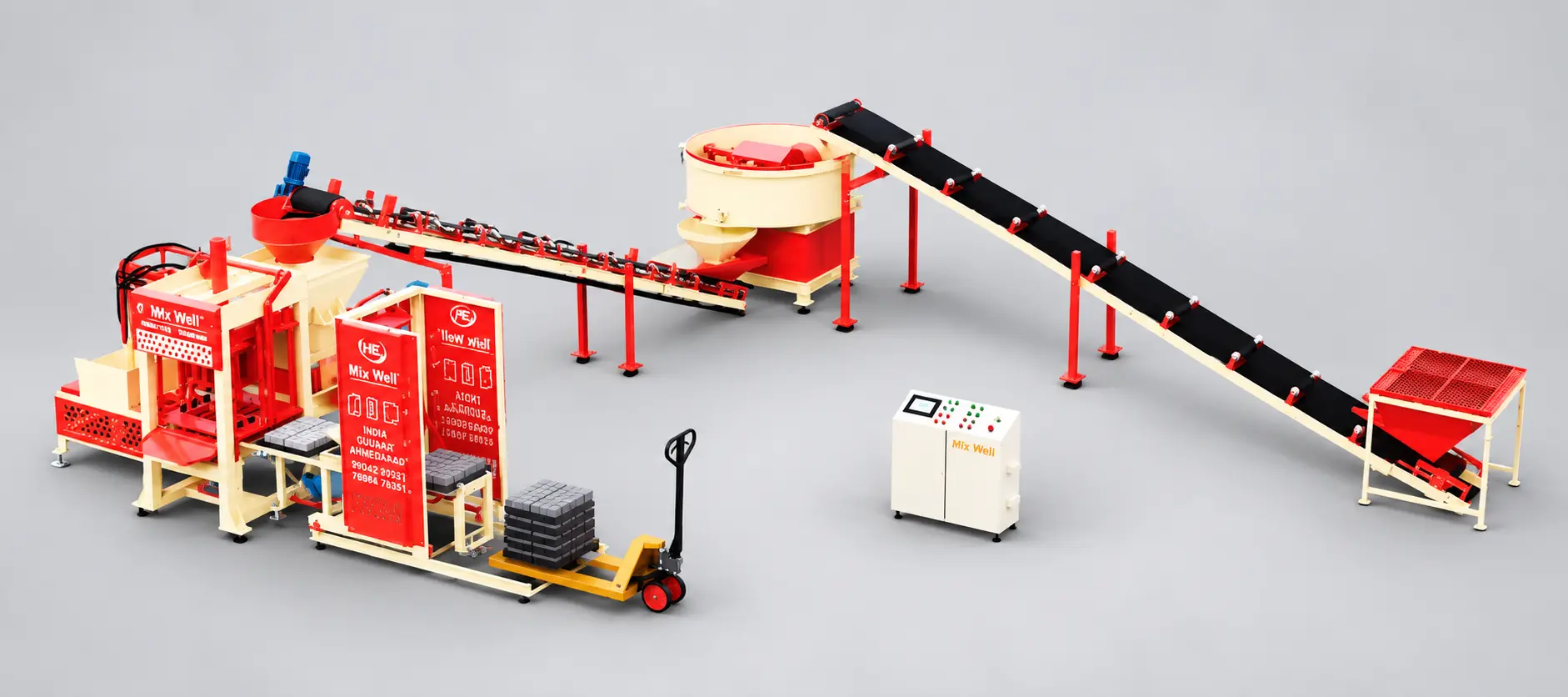

We are the Manufacturer and Supplier of the Fly Ash Brick Making Machine (FAM-1440), which is fully automatic. This device can produce eight bricks at once. The Fully Automatic Fly Ash Brick Making Machine (FAM-1440) is expertly engineered includes heavy-duty vibrators, pan mixers, conveyors, etc. 15360 bricks can be produced in a shift by this Fully Automatic Fly Ash Brick Making Machine (FAM-1440) model. The Hardic Engineering is one the Leading Manufacturer of automatic fly ash brick making machine in India and we also export the same at Africa, United Arab Emirates, Sri Lanka, Ukraine.
| Sr. No. | Parameter | Specification |
|---|---|---|
| 1 | Model | RMB 36 |
| 2 | Machine Type | Fully Automatic Block Machine with RMC Plant |
| 3 | Production System | Hydraulic + Vibration |
| 4 | Control System | PLC Based Automatic Control |
| 5 | Brick Production | 30 - 40 Bricks per Cycle |
| 6 | Paver Production | 30 Pavers per Cycle |
| 7 | Production Capacity | Up to 15,000 - 18,000 Blocks / 8 Hours |
| 8 | Paver Capacity | Up to 12,000 - 15,000 Pavers / 8 Hours |
| 9 | Pallet Size | 750 × 610 × 18 mm |
| 10 | Maximum Product Height | 200 mm |
| 11 | Minimum Product Height | 40 - 50 mm |
| 12 | Hydraulic Pressure | 120 - 150 Bar |
| 13 | Vibration System | Servo / Hydraulic Vibrators |
| 14 | Aggregate Feeding | Automatic Batcher |
| 15 | Mixer Type | Turbo Pan Mixer |
| 16 | RMC Plant Capacity | 30 - 36 m³/hr |
| 17 | Cement Silo Capacity | 50 - 100 Ton |
| 18 | Material Feeding | Belt Conveyor System |
| 19 | Power Requirement | 120 - 150 kW (Approx.) |
| 20 | Labor Requirement | 2 - 3 Operators |
| 21 | Mould Change System | Quick Change Design |
| 22 | Operation Mode | Fully Automatic / Manual Override |
| Sr. No. | Technical Details | HP/Cap. |
|---|---|---|
| 1 | Pallet Size | 610 X 610 X 18 MM |
| 2 | Bricks Production Capacity per hour | 1920 Bricks/Hour |
| 3 | Bricks Production Capacity per 8 hour | 15360 Bricks/Hour |
| 4 | Belt Conveyor Width | 500 mm |
| 5 | Belt Conveyor Power | 2 HP / 1.5 KW |
| 6 | Belt Conveyor Feeding Capacity | 4 MT / Hour |
| 7 | Bricks Press Type | Automatic Hydraulic Bricks Press with HIGH VIBRATION Technology |
| 8 | Bricks Press Body | Heavy Duty Window type Body Fabricated from PIPE |
| 9 | Bricks Press Capacity | 1920 Bricks/Hour |
| 10 | Bricks per Stroke | 8 Bricks |
| 11 | Bricks Size(mm) | 230 (L) X 110 (W) X 75 (H) Size Option Available |
| 12 | Hydraulic Motor | 10 HP / 7.5 KW |
| 13 | Trolley Feeder Motor | 2 HP / 1.5 KW |
| 14 | Hyd. Oil Tank Capacity | 500 LITER |
| 15 | Hydraulic Valves | YUKEN Make / 24 DC |
| 16 | High Pressure Pump | YUKEN Make van pump |
| 17 | High Flow Pump | YUKEN Make van pump |
| Product | Size | FAM-1080 | FAM-1440 | FAM-1800 | FAM-2160 | FAM-2520 |
|---|---|---|---|---|---|---|

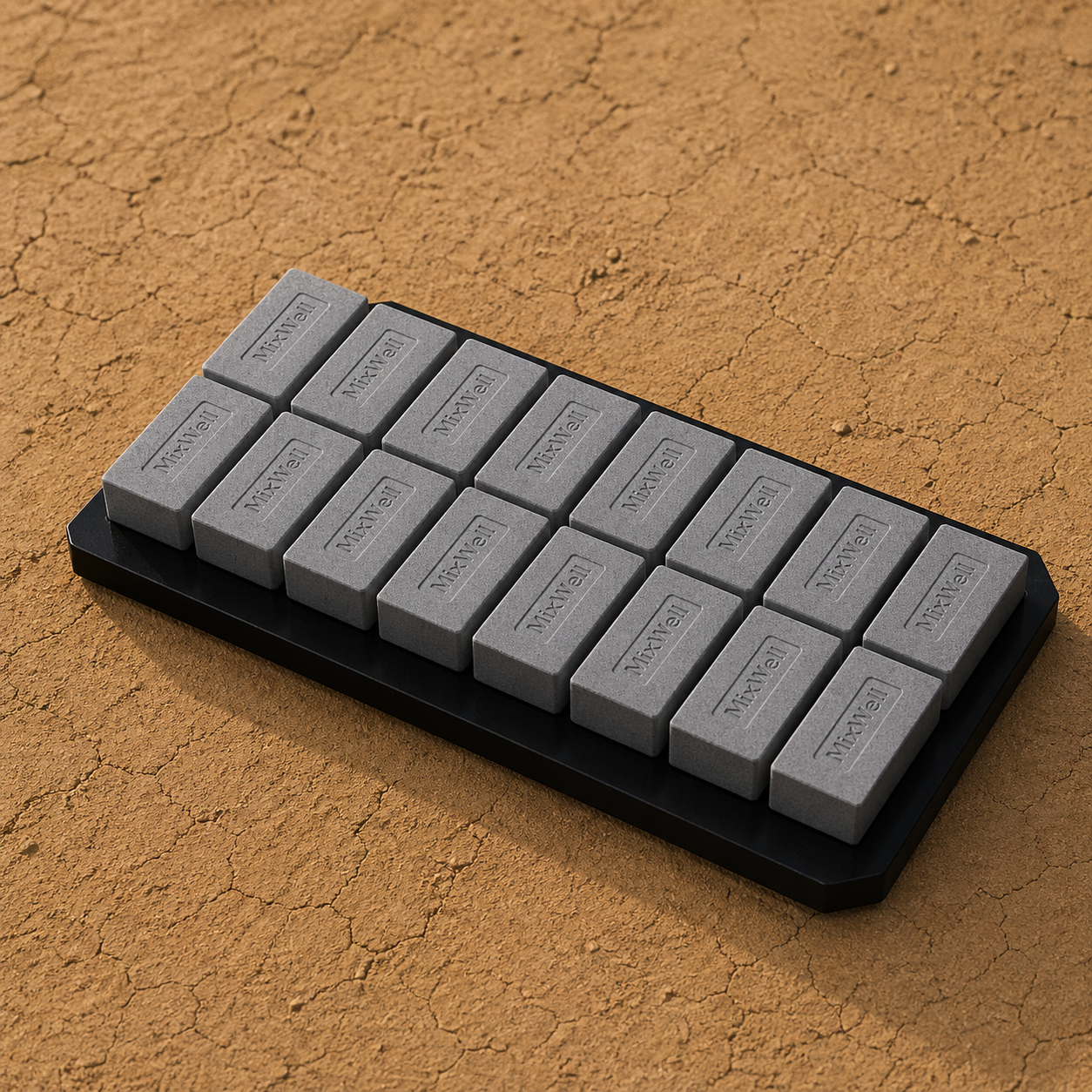

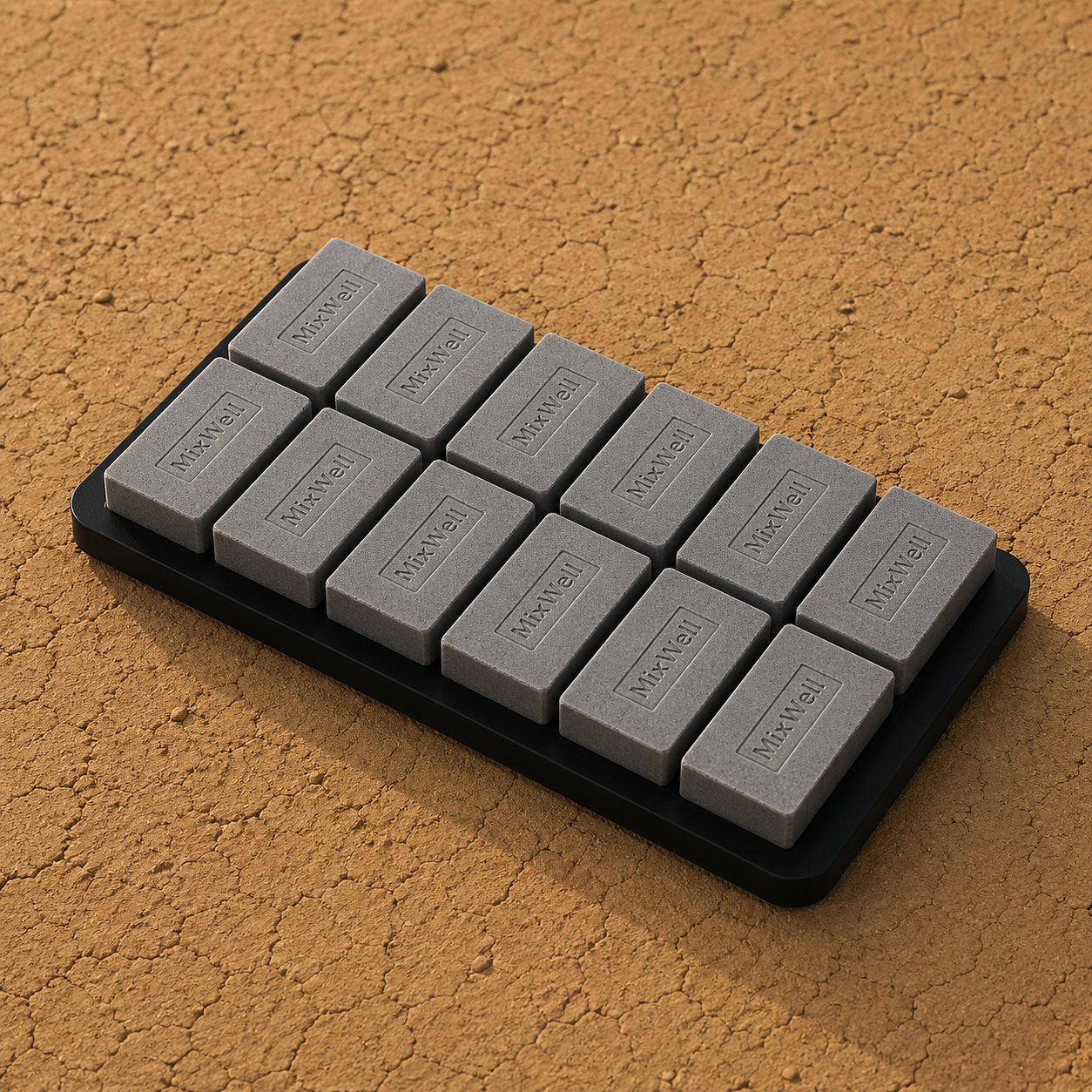

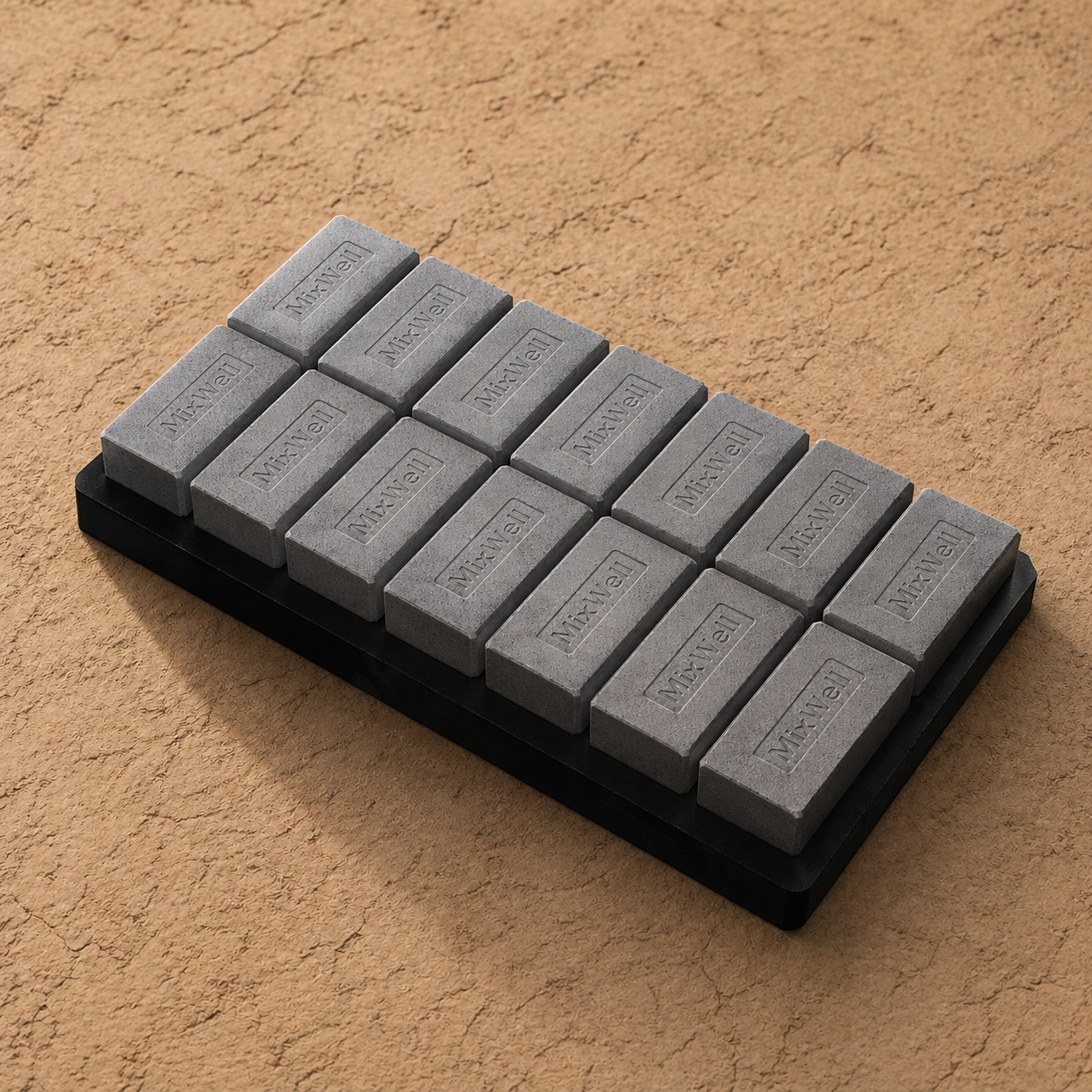

| Fly Ash Brick |
230x110x75 MM 190x90x90 MM 250x120x75 MM |
1440 1920 1440 |
1920 2400 1920 |
2400 2880 1920 |
2880 3360 2400 |
3360 3840 2880 |

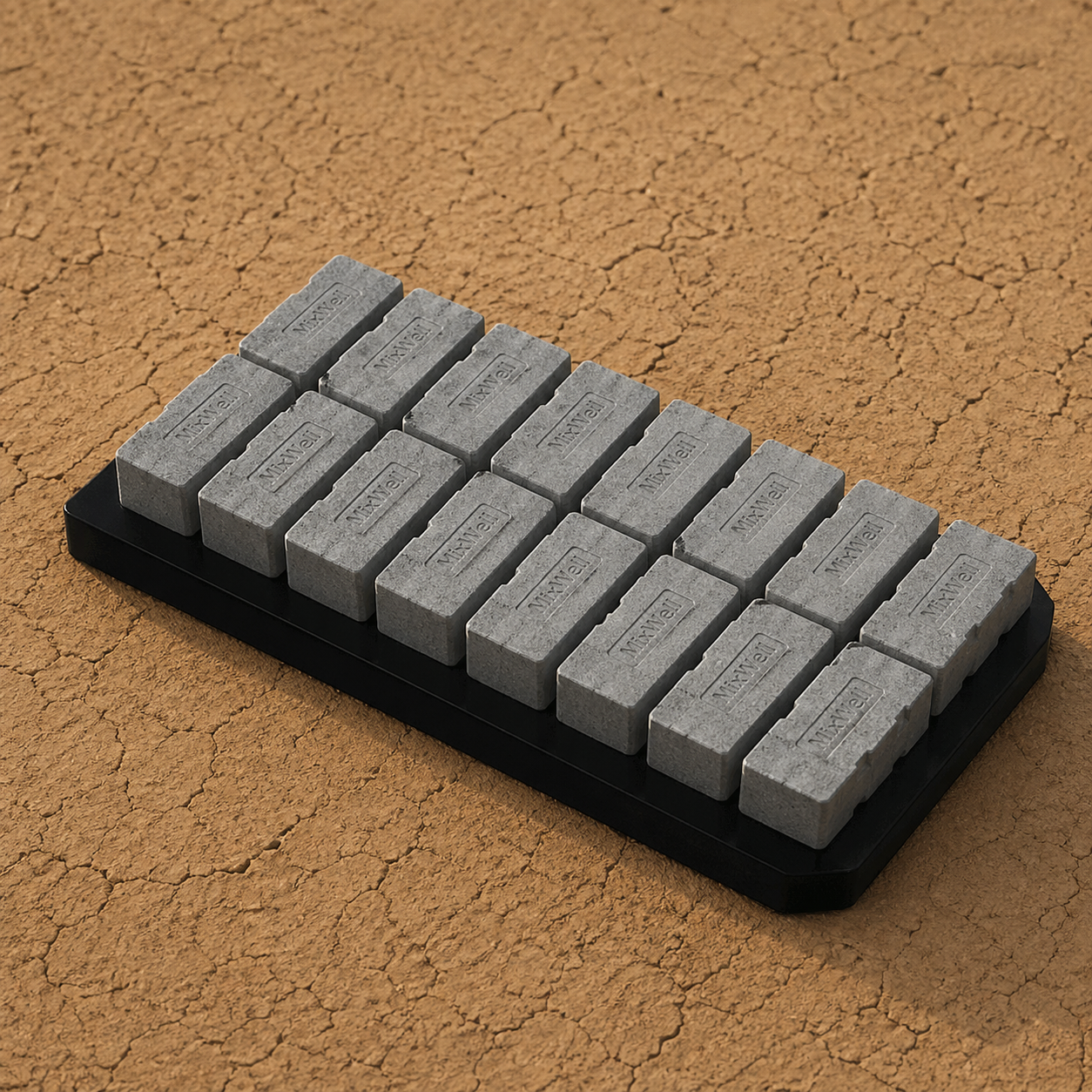

| Fly Ash Brick on Edge | 230x110x75 MM | 2400 | 2880 | 3360 | 3840 | 4320 |

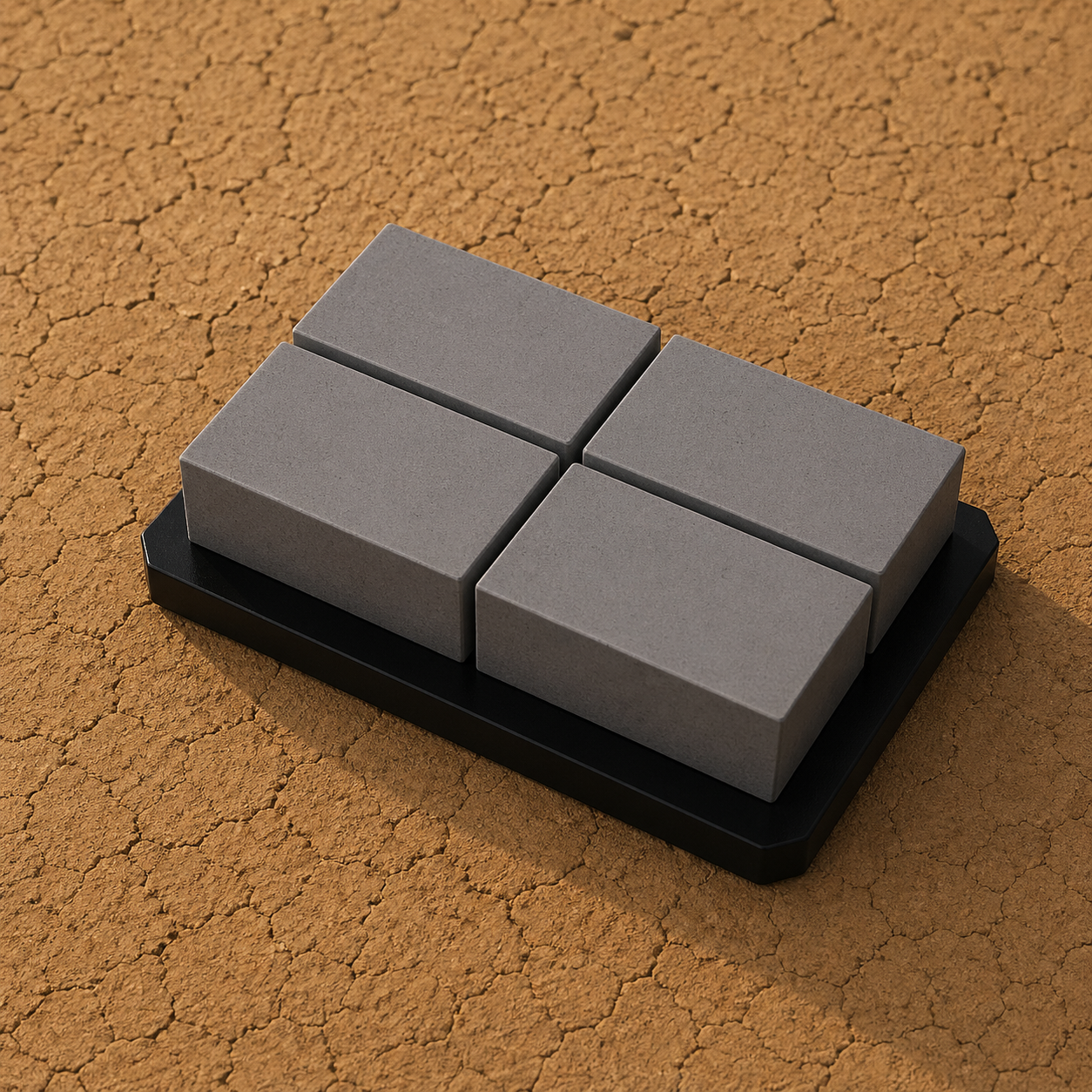

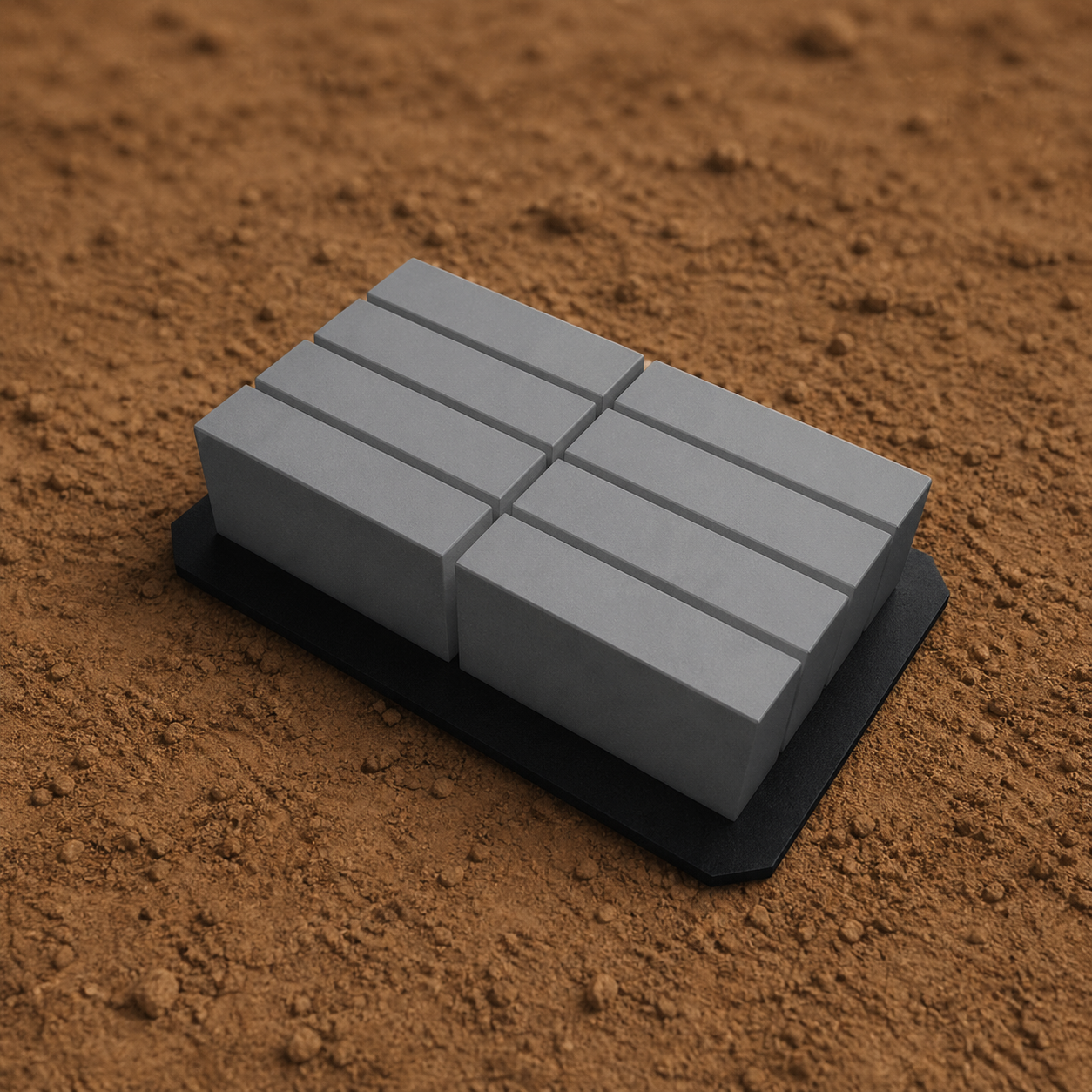

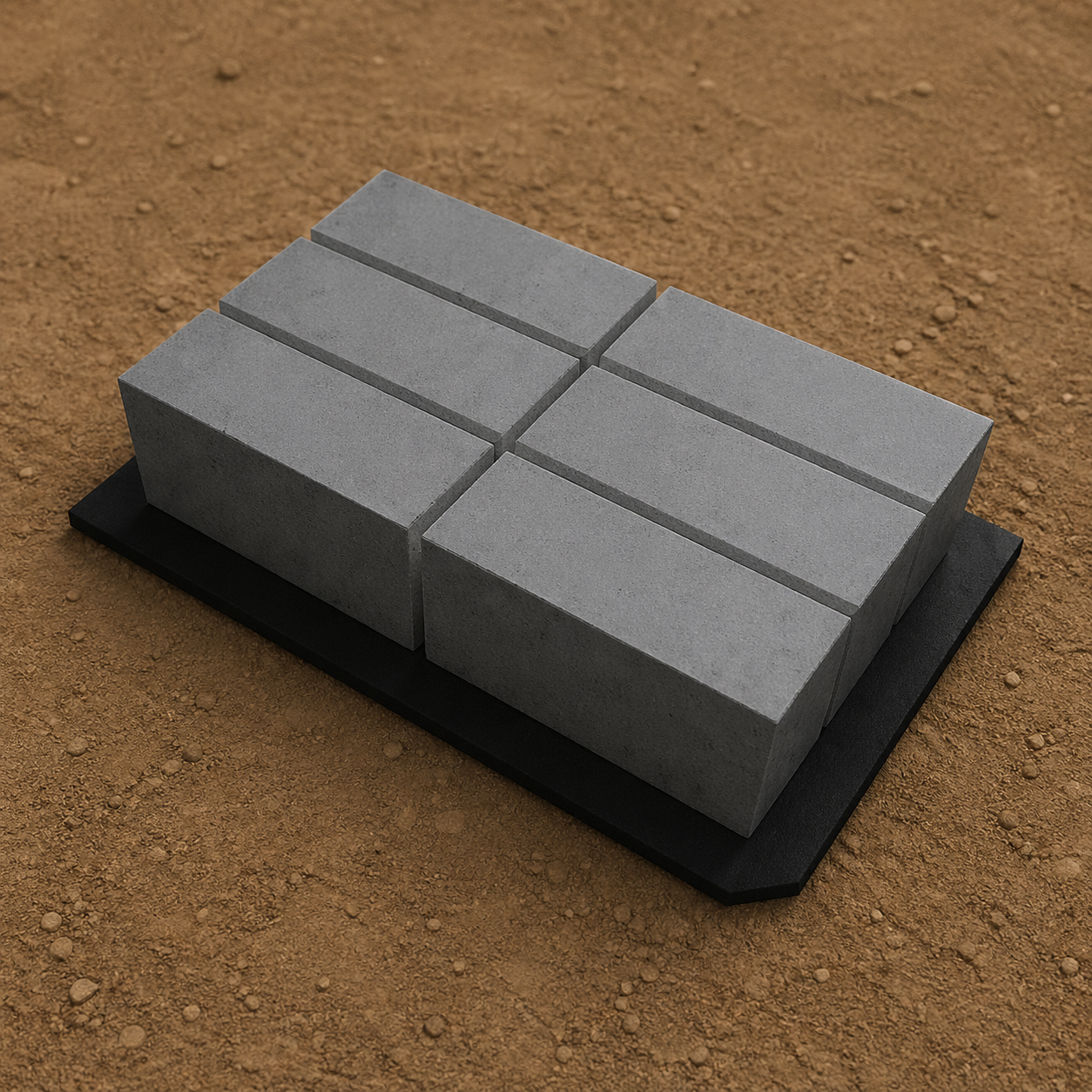

| Solid Concrete Block |
400x200x200 MM 400x200x150 MM 400x200x100 MM |
480 480 720 |
480 720 960 |
720 960 1200 |
720 960 1440 |
960 1440 1920 |

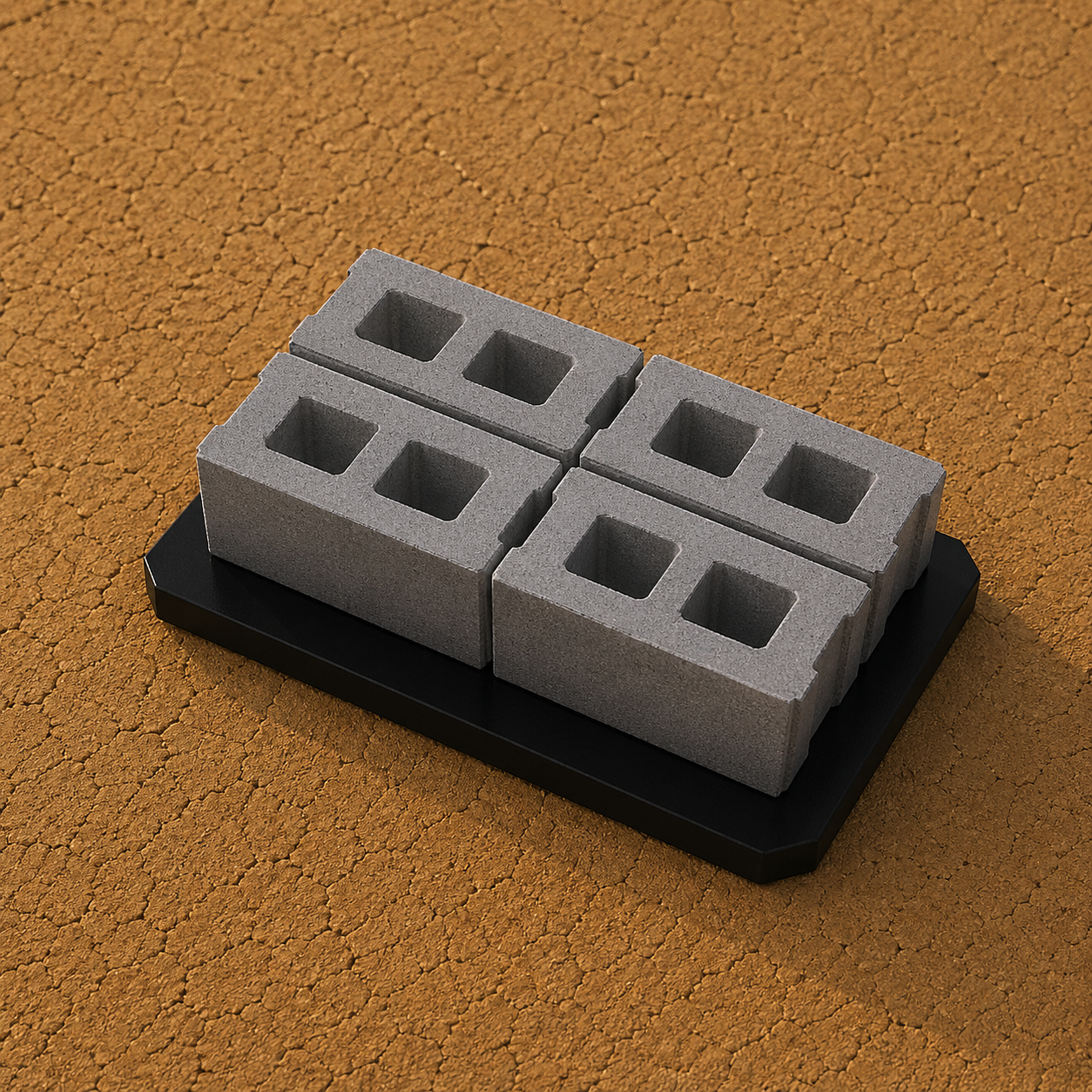

| Hollow Block | 400x200x200 MM | 480 | 480 | 720 | 720 | 960 |

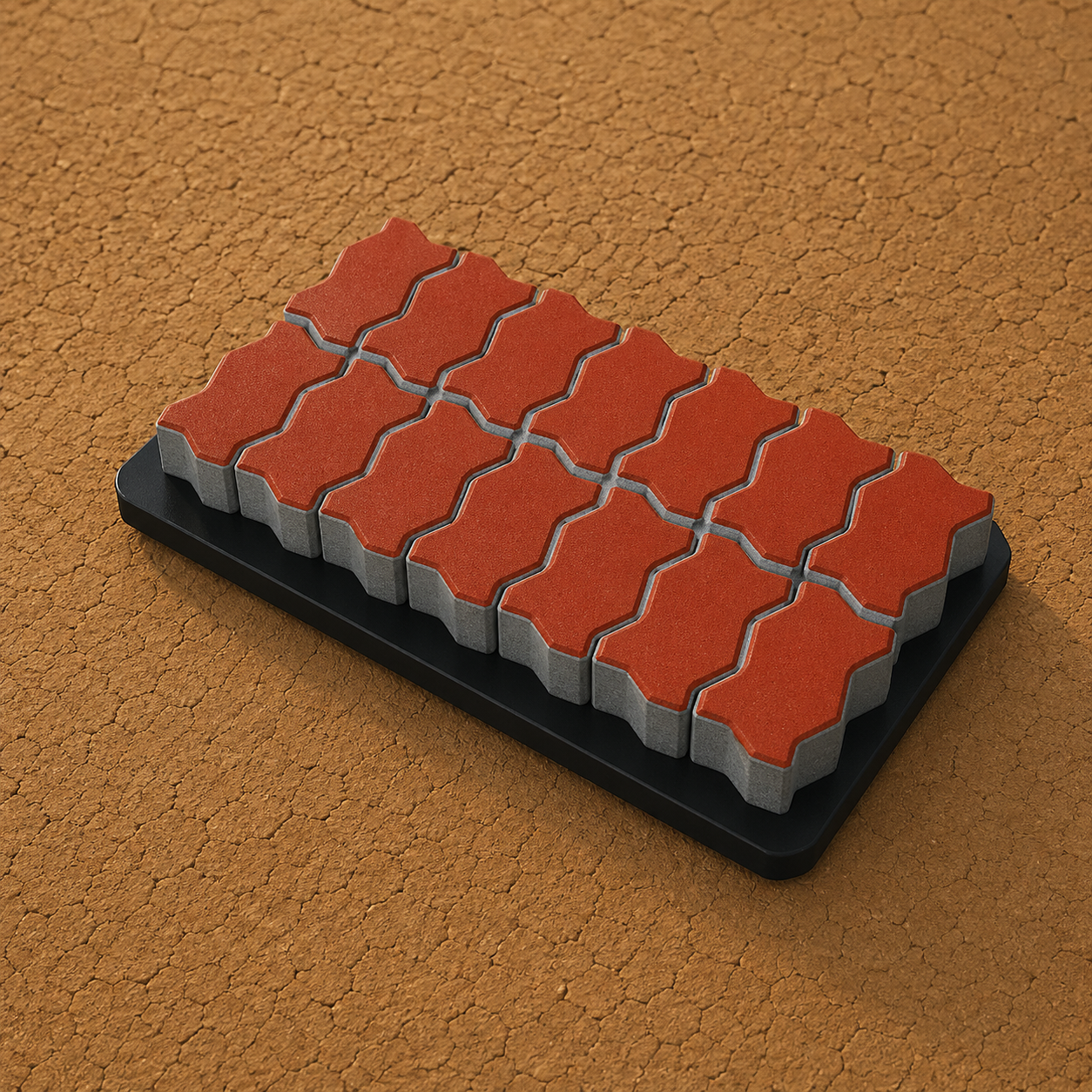

| Zigzag Paver | 225x112.5x60 MM | 1080 | 1440 | 1800 | 2160 | 2520 |

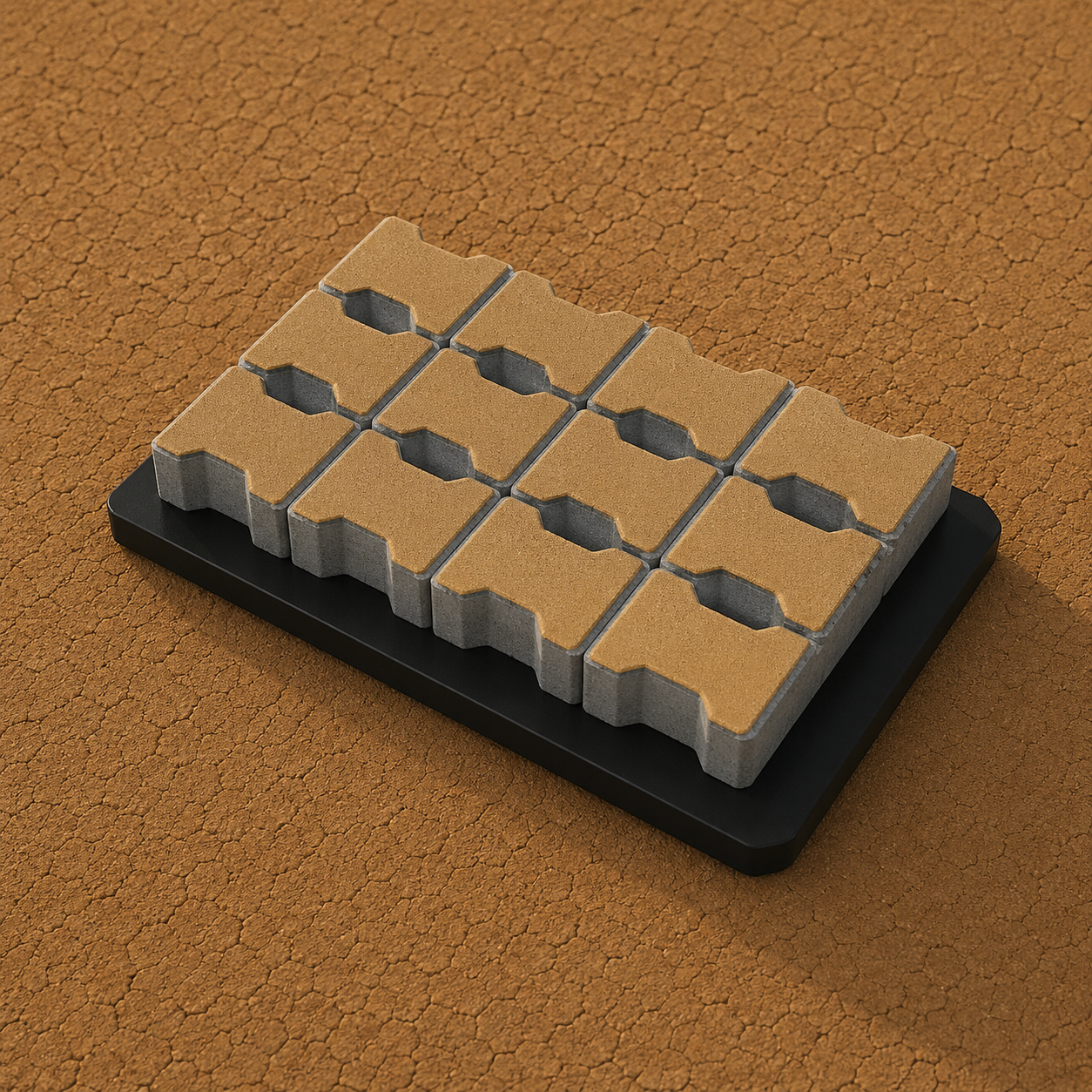

| I Shape Paver | 200x165x60 MM | 720 | 1080 | 1440 | 1620 | 2160 |

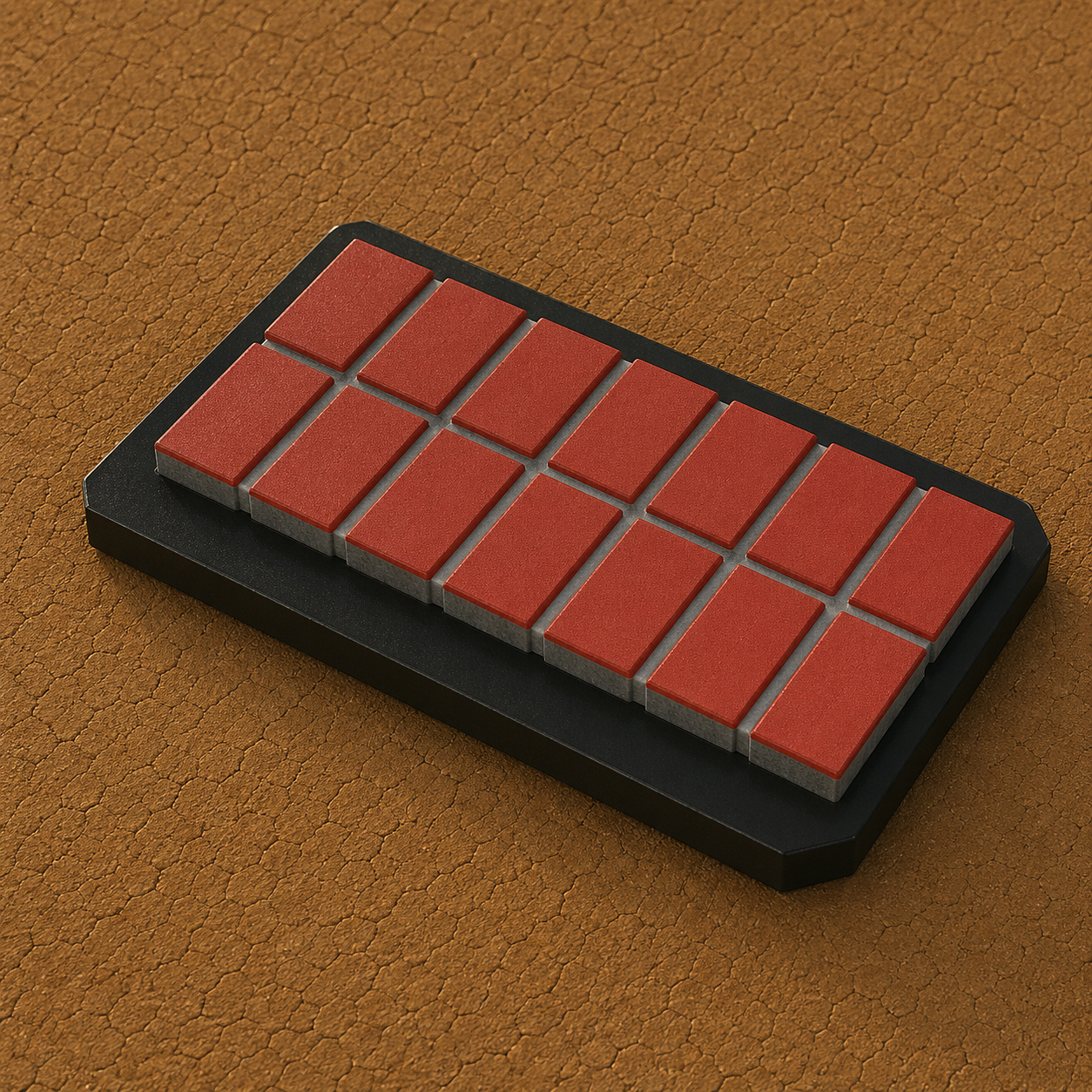

| Brick Paver | 200x100x100 MM | 1080 | 1440 | 1800 | 2160 | 2520 |

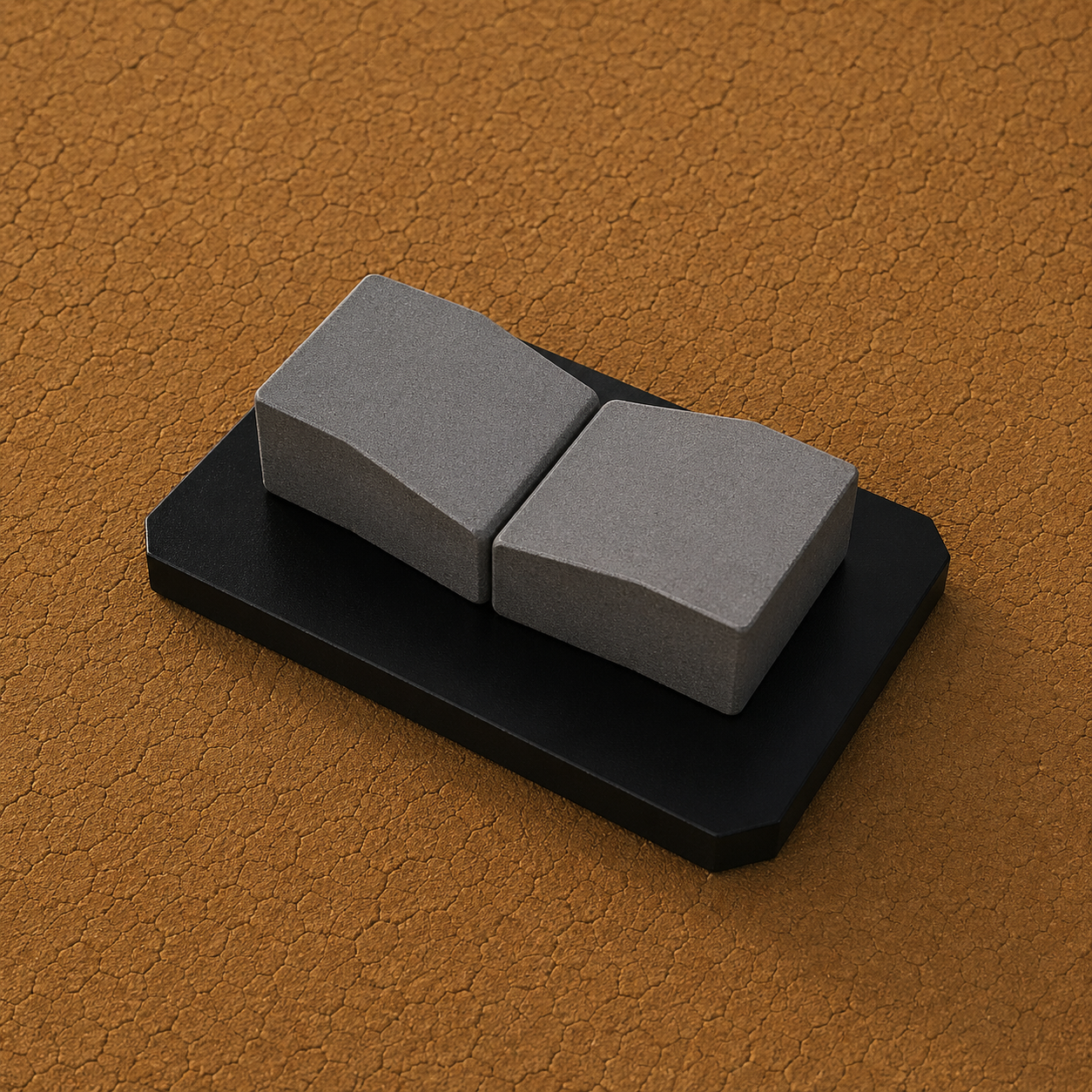

| Curve Stone Block | 300x300x100 MM | 240 | 240 | 480 | 480 | 480 |
