FAM 1080 ECONOMIC

Hardic Engineering manufactures the FAM 1080 Economic, an automatic fly ash brick making machine designed for efficient brick production. The machine can produce up to 6 bricks in a single stroke.

Hardic Engineering team and industrial machinery engineering expertise
FAM 1080

FAM 1080 ECONOMIC AUTOMATIC FLY ASH BRICK MAKING MACHINE

Hardic Engineering manufactures the FAM 1080 Economic, an automatic fly ash brick making machine designed for efficient brick production. The machine can produce up to 6 bricks in a single stroke. The FAM 1080 Economic combines hydraulic pressing, high-vibration technology, a conveyor system and a pan mixer to support consistent production. According to the supplied specifications, it can produce up to 11,520 bricks in an 8-hour shift. Hardic Engineering manufactures automatic fly ash brick making machines for construction-material producers in India and international markets. Confirm the configuration and output required for your production needs with the Hardic Engineering team.

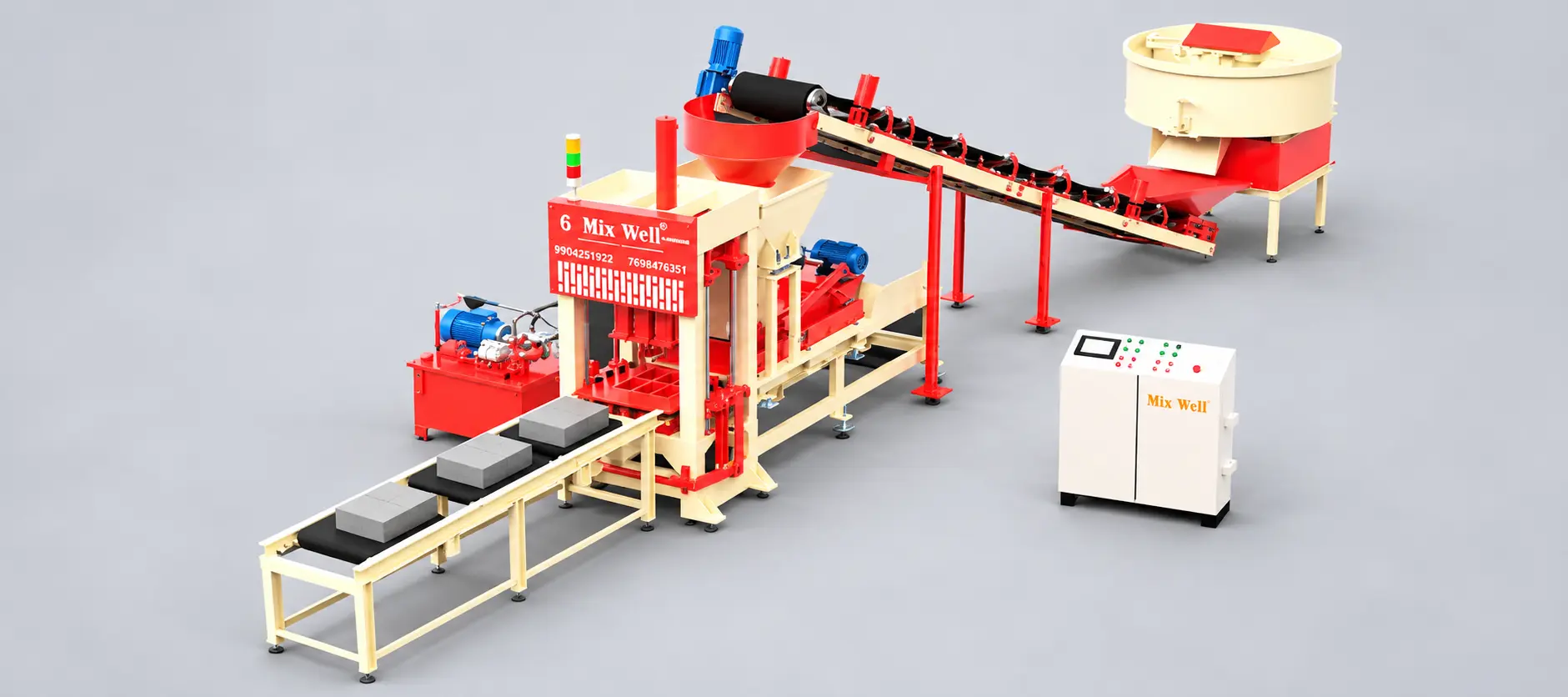

FAM-1080 Economic automatic fly ash brick making machine by Hardic Engineering

Technical Specification

Sr. No. Technical Details HP/Cap.
1 Vibrator Motor 7.5 HP (5.6 KW)
2 Oil Cooling Water Cooling 36 inch
3 Control Panel WIFI SCADA SYSTEM + PLC BASED WITH TOUCH SCREEN
4 Pallet Feeding Automatic
5 Mixer Type Pan Mixer
6 Mixer Capacity 400 kgs 1 nos
7 Pan Mixer Motor 10 HP / 7.45 KW
8 Pan Mixer Gear Box HELICAL BEWEL Gear Box
9 Mixer Speed 24-28 RPM
10 Mixing Arms 2 Nos. per Mixer
11 Crushing Rollers 2 Nos. per Mixer
12 Pan Mixer Feeding Manual / Automatic Feeding Available as Optional
13 Pan Mixer Gate Manual / Hydraulic Gate Available as Optional
14 Total Power 26.5 HP / 19.38 KW
15 Other LATEST GERMAN TECHNOLOGY HYDRAULIC + VIBRATION TYPE + FOUR IN ONE MODEL LIKE BRICK + PAVER BLOCK + SOLID BLOCK + HOLLOW BLOCK
1
Vibrator Motor
7.5 HP (5.6 KW)
2
Oil Cooling
Water Cooling 36 inch
3
Control Panel
WIFI SCADA SYSTEM + PLC BASED WITH TOUCH SCREEN
4
Pallet Feeding
Automatic
5
Mixer Type
Pan Mixer
6
Mixer Capacity
400 kgs 1 nos
7
Pan Mixer Motor
10 HP / 7.45 KW
8
Pan Mixer Gear Box
HELICAL BEWEL Gear Box
9
Mixer Speed
24-28 RPM
10
Mixing Arms
2 Nos. per Mixer
11
Crushing Rollers
2 Nos. per Mixer
12
Pan Mixer Feeding
Manual / Automatic Feeding Available as Optional
13
Pan Mixer Gate
Manual / Hydraulic Gate Available as Optional
14
Total Power
26.5 HP / 19.38 KW
15
Other
LATEST GERMAN TECHNOLOGY HYDRAULIC + VIBRATION TYPE + FOUR IN ONE MODEL LIKE BRICK + PAVER BLOCK + SOLID BLOCK + HOLLOW BLOCK
Latest German Technology: Hydraulic + Vibration Type System
Machine Application: Four in One Model - Brick + Paver Block + Solid Block + Hollow Block


Sr. No. Technical Details HP/Cap.
1 Pallet Size 610 X 550 X 18 MM
2 Bricks Production Capacity per hour 1440 Bricks/Hour
3 Bricks Production Capacity per 8-hour shift 11,520 Bricks/8-hour shift
4 Belt Conveyor Width 500 mm
5 Belt Conveyor Power 2 HP / 1.5 KW
6 Belt Conveyor Feeding Capacity 4 MT / Hour
7 Bricks Press Type Automatic Hydraulic Bricks Press with HIGH VIBRATION Technology
8 Bricks Press Body Heavy Duty Window type Body Fabricated from PIPE
9 Bricks Press Capacity 1440 Bricks/Hour
10 Bricks per Stroke 6 Bricks
11 Bricks Size(mm) 230 (L) X 110 (W) X 75 (H) Size Option Available
12 Hydraulic Motor 10 HP / 7.5 KW
13 Trolley Feeder Motor 2 HP / 1.5 KW
14 Hyd. Oil Tank Capacity 500 LITER
15 Hydraulic Valves YUKEN Make / 24 DC
16 High Pressure Pump YUKEN Make van pump
17 High Flow Pump YUKEN Make van pump
1
Pallet Size
610 X 550 X 18 MM
2
Bricks Production Capacity per hour
1440 Bricks/Hour
3
Bricks Production Capacity per 8-hour shift
11,520 Bricks/8-hour shift
4
Belt Conveyor Width
500 mm
5
Belt Conveyor Power
2 HP / 1.5 KW
6
Belt Conveyor Feeding Capacity
4 MT / Hour
7
Bricks Press Type
Automatic Hydraulic Bricks Press with HIGH VIBRATION Technology
8
Bricks Press Body
Heavy Duty Window type Body Fabricated from PIPE
9
Bricks Press Capacity
1440 Bricks/Hour
10
Bricks per Stroke
6 Bricks
11
Bricks Size(mm)
230 (L) X 110 (W) X 75 (H) Size Option Available
12
Hydraulic Motor
10 HP / 7.5 KW
13
Trolley Feeder Motor
2 HP / 1.5 KW
14
Hyd. Oil Tank Capacity
500 LITER
15
Hydraulic Valves
YUKEN Make / 24 DC
16
High Pressure Pump
YUKEN Make van pump
17
High Flow Pump
YUKEN Make van pump

Brick & Block Capacity & Sizes

Fly Ash Brick

Fly Ash Brick

Size (mm):230 x 110 x 75
Size (Inch):(9" x 4.25" x 3")
Size (mm):230 x 100 x 75
Size (Inch):(9" x 4" x 3")
PCS/Cavity:6
PC/Hr:1,440
PCS/8 Hr:11,520
Fly Ash Brick On Edge

Fly Ash Brick On Edge

Size (mm):230 x 110 x 75
Size (Inch):(9" x 4.25" x 3")
Size (mm):230 x 100 x 75
Size (Inch):(9" x 4" x 3")
PCS/Cavity:10
PC/Hr:2,400
PCS/8 Hr:19,200
Standard Brick

Fly Ash Brick

Size (mm):190 x 90 x 90
Size (Inch):(8" x 4" x 4")
PCS/Cavity:8
PC/Hr:1,920
PCS/8 Hr:15,360
Large Brick

Fly Ash Brick

Size (mm):250 x 120 x 75
Size (Inch):(10" x 5 x 3")
PCS/Cavity:6
PC/Hr:1,440
PCS/8 Hr:11,520
Solid Concrete Block

Solid Concrete Block

Size (mm):400 x 200 x 200
Size (Inch):(16" x 8" x 8")
PCS/Cavity:2
PC/Hr:480
PCS/8 Hr:3,840
Solid Concrete Block

Solid Concrete Block

Size (mm):400 x 200 x 150
Size (Inch):(16" x 8" x 6")
PCS/Cavity:2
PC/Hr:480
PCS/8 Hr:3,840
Solid Concrete Block

Solid Concrete Block

Size (mm):400 x 200 x 100
Size (Inch):(16" x 8" x 4")
PCS/Cavity:3
PC/Hr:720
PCS/8 Hr:5,760
Hollow Block

Hollow Block

Size (mm):400 x 200 x 200
Size (Inch):(16" x 8" x 8")
PCS/Cavity:2
PC/Hr:480
PCS/8 Hr:3,840
Zig Zag Paver Block

Zig Zag Paver Block

Size (mm):225 x 112.5 x 60
Size (Inch):225 x 112.5 x 80
PCS/Cavity:6
PC/Hr:1,080
PCS/8 Hr:8,640
I Shape Paver Block

I Shape Paver Block

Size (mm):200 x 165 x 60
Size (Inch):200 x 165 x 80
PCS/Cavity:4
PC/Hr:720
PCS/8 Hr:5,760
Brick Paver

Brick Paver

Size (mm):200 x 100 x 100
Size (Inch):(8" x 4" x 4")
PCS/Cavity:6
PC/Hr:1,080
PCS/8 Hr:8,640
Kerb Stone Block

Kerb Stone Block

Size (mm):300 x 300 x 100
Size (Inch):(12" x 12" x 4")
PCS/Cavity:1
PC/Hr:240
PCS/8 Hr:1,920

Compare FAM-1080 With Other Models

Product Size FAM-1080 FAM-1440 FAM-1800 FAM-2160 FAM-2520
Fly Ash Brick 230x110x75 MM
190x90x90 MM
250x120x75 MM 		1440
1920
1440 		1920
2400
1920 		2400
2880
1920 		2880
3360
2400 		3360
3840
2880
Fly Ash Brick on Edge 230x110x75 MM 2400 2880 3360 3840 4320
Solid Concrete Block 400x200x200 MM
400x200x150 MM
400x200x100 MM 		480
480
720 		480
720
960 		720
960
1200 		720
960
1440 		960
1440
1920
Hollow Block 400x200x200 MM 480 480 720 720 960
Zigzag Paver 225x112.5x60 MM 1080 1440 1800 2160 2520
I Shape Paver 200x165x60 MM 720 1080 1440 1620 2160
Brick Paver 200x100x100 MM 1080 1440 1800 2160 2520
Curve Stone Block 300x300x100 MM 240 240 480 480 480

High Production Capacity Machine

The FAM-1080 Economic is designed for producing fly ash bricks, paver blocks and selected concrete block products. Actual output depends on the product size, mould configuration and operating conditions.
